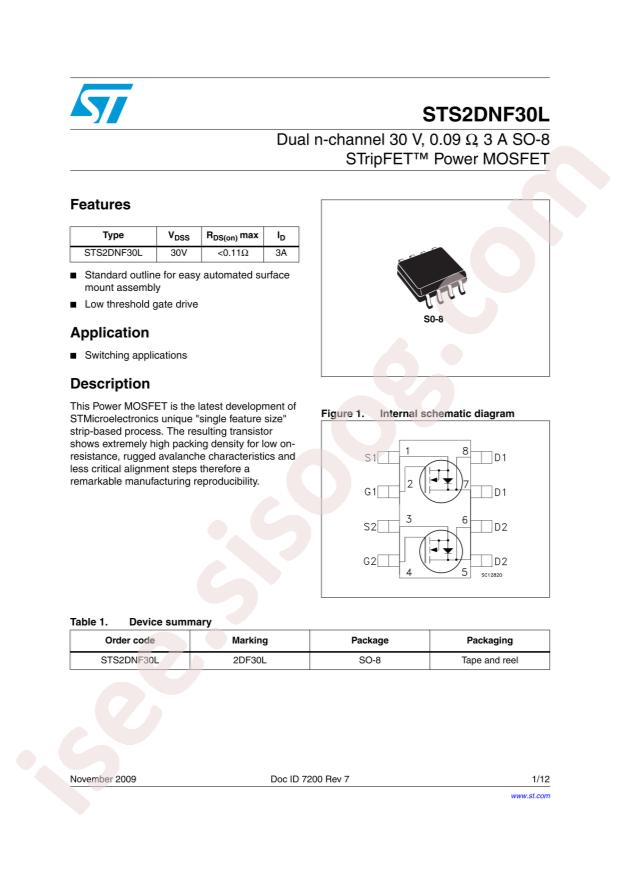

STS2DNF30L دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STS2DNF30L
|
|
حجم فایل
|
54.421
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STS2DNF30L
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2W
-
Total Gate Charge (Qg@Vgs):
4.5nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
121pF@25V
-
Continuous Drain Current (Id):
3A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
110mΩ@10V,1A
-
Package:
SOP-8
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Not For New Designs
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
3A
-
Rds On (Max) @ Id, Vgs:
110mOhm @ 1A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
4.5nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
121pF @ 25V
-
Power - Max:
2W
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SO
-
Base Part Number:
STS2D
-
detail:
Mosfet Array 2 N-Channel (Dual) 30V 3A 2W Surface Mount 8-SO
