دیتاشیت L7980A

مشخصات دیتاشیت

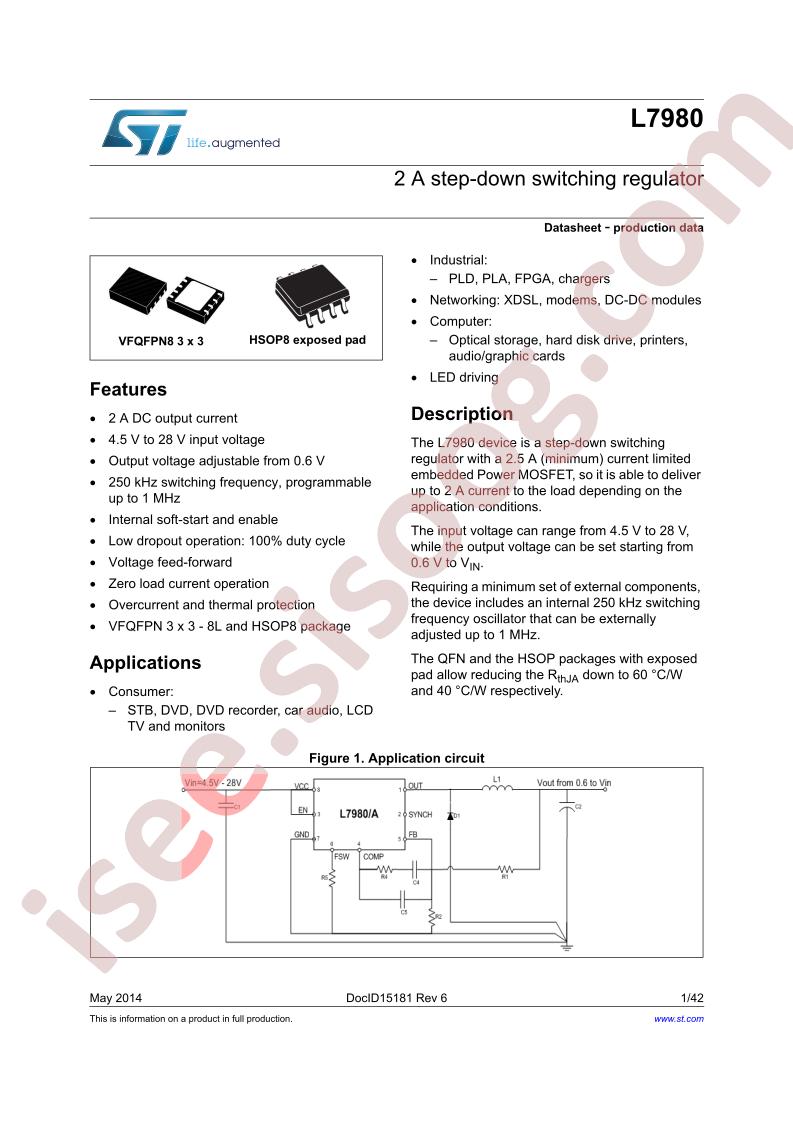

دانلود دیتاشیت L7980(A) Datasheet	L7980(A) Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: -
Datasheet: STMicroelectronics L7980A
Input Voltage: -
Number of Outputs: -
Switching Frequency: -
Output Current (Max): -
Synchronous Rectification: -
Package: HSOP-8-EP
Manufacturer: STMicroelectronics
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Output Type: Adjustable
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 28V
Voltage - Output (Min/Fixed): 0.6V
Voltage - Output (Max): 28V
Current - Output: 2A
Frequency - Switching: 250kHz ~ 1MHz
Synchronous Rectifier: No
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package: 8-HSOP
Base Part Number: L7980
detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
