دیتاشیت STTH1210DI

STTH1210

مشخصات دیتاشیت

نام دیتاشیت STTH1210
حجم فایل 190.73 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

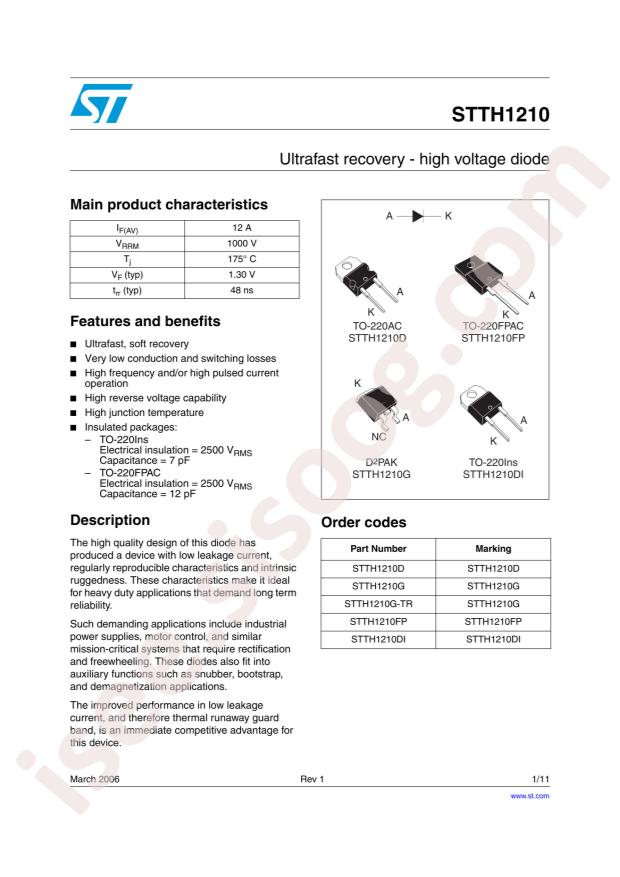

دانلود دیتاشیت STTH1210

STTH1210 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Diodes - Fast Recovery Rectifiers
  • Datasheet: STMicroelectronics STTH1210DI
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 1kV
  • Operating Temperature: +175°C@(Tj)
  • Forward Voltage (Vf@If): 2V@12A
  • Reverse Leakage Current: 10uA@1kV
  • Reverse Recovery Time (trr): 90ns
  • Average Rectified Current (Io): 12A
  • Package: TO-220-2
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 1000V
  • Current - Average Rectified (Io): 12A
  • Voltage - Forward (Vf) (Max) @ If: 2V @ 12A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 10µA @ 1000V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-2 Insulated, TO-220AC
  • Supplier Device Package: TO-220AC ins
  • Operating Temperature - Junction: 175°C (Max)
  • Base Part Number: STTH1210
  • detail: Diode Standard 1000V 12A Through Hole TO-220AC ins
