VIPER37HE دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | VIPER37HE |
|---|---|
| حجم فایل | 75.302 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |
دانلود دیتاشیت VIPER37HE |
دانلود دیتاشیت |
|---|
سایر مستندات

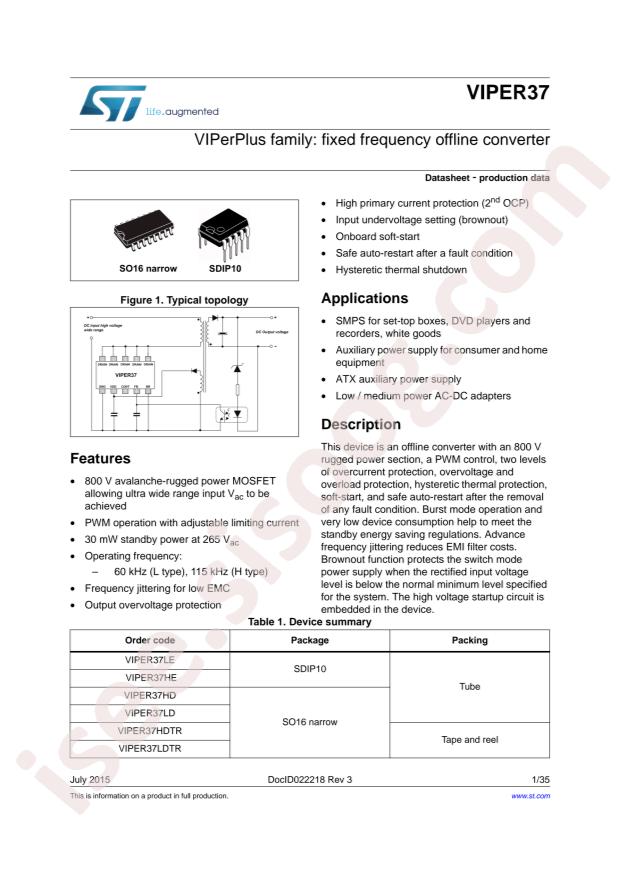

VIPER37 Datasheet 35 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Topology: Flyback
- Datasheet: STMicroelectronics VIPER37HE
- Duty Cycle: 80%
- Supply Voltage: 8.5V~23.5V
- Output Isolation: Isolation
- Breakdown Voltage: 800V
- Switching Frequency: 115kHz
- Operating Temperature: -40°C~+150°C@(Tj)
- Package: SDIP-10
- Manufacturer: STMicroelectronics
- Series: VIPer™ plus
- Packaging: Tube
- Part Status: Active
- Internal Switch(s): Yes
- Voltage - Breakdown: 800V
- Voltage - Start Up: 14V
- Voltage - Supply (Vcc/Vdd): 8.5V ~ 23.5V
- Frequency - Switching: 115kHz
- Power (Watts): 20W
- Fault Protection: Current Limiting, Over Temperature, Over Voltage
- Control Features: -
- Package / Case: 10-SDIP (0.300", 7.62mm)
- Supplier Device Package: 10-SDIP
- Mounting Type: Through Hole
- Base Part Number: VIPER37
- detail: Converter Offline Flyback Topology 115kHz 10-SDIP
