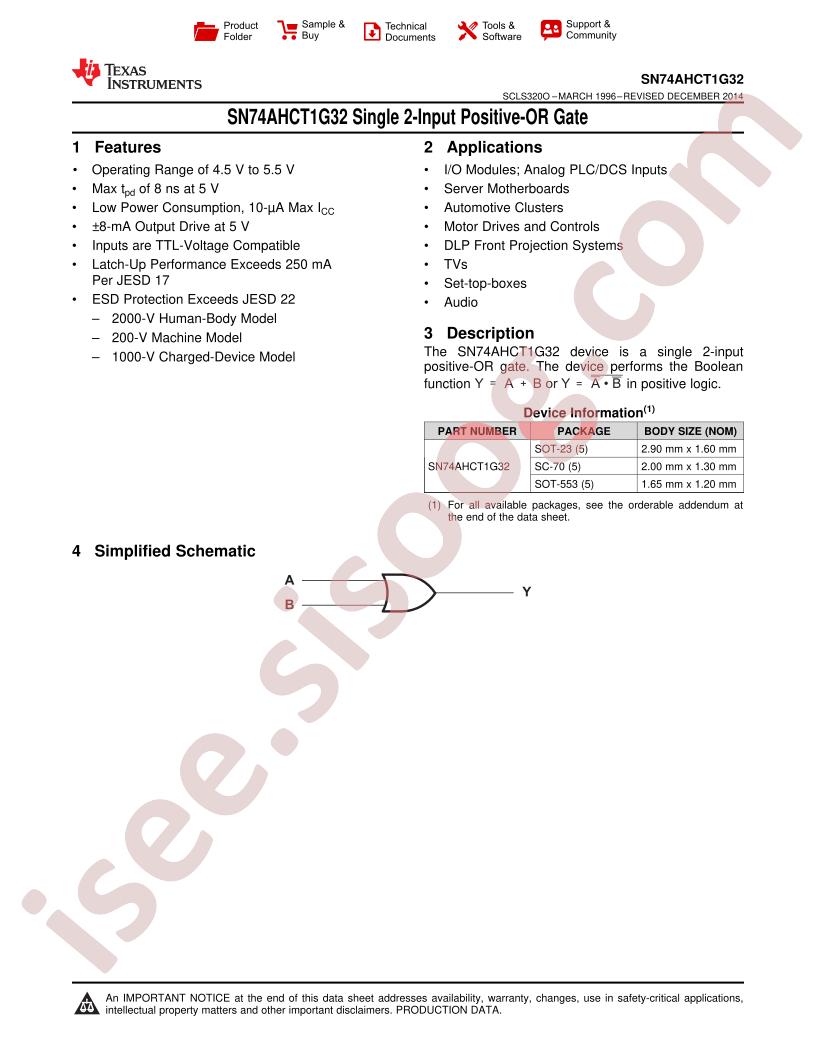

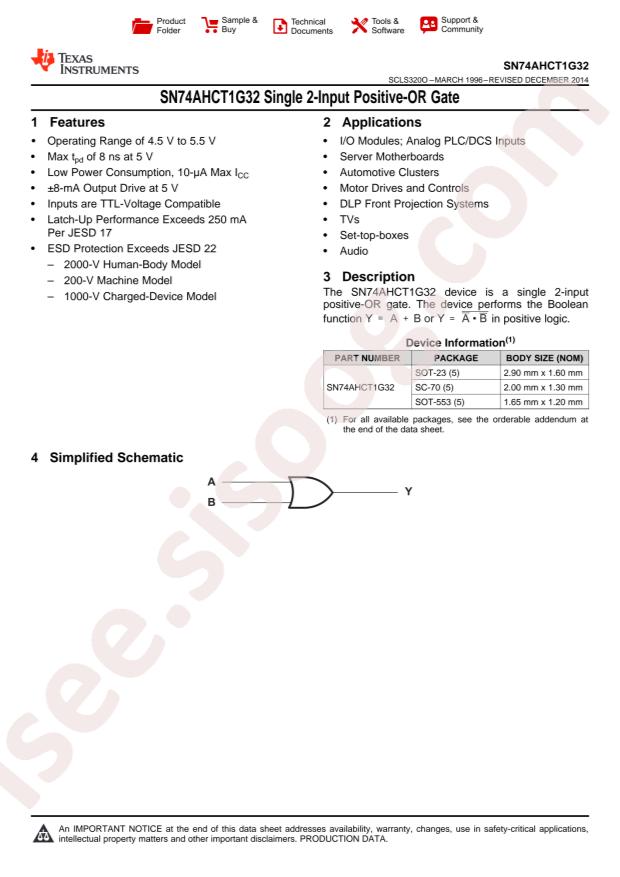

SN74AHCT1G32DBVR دیتاشیت

SN74AHCT1G32DBVR

مشخصات دیتاشیت

نام دیتاشیت SN74AHCT1G32DBVR
حجم فایل 59.245 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت SN74AHCT1G32DBVR

دانلود دیتاشیت

سایر مستندات

SN74AHCT1G32 Datasheet 22 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AHCT
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74AHCT1G32DBVR
  • Sink Current: 8mA
  • Source Current: 8mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: ORGate
  • Number of Channels: 1
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 7.9ns@5V,50pF
  • Quiescent Current (Max): 1uA
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Max Propagation Delay @ V, Max CL: 7.9ns @ 5V, 50pF
  • Package / Case: SC-74A, SOT-753
  • Logic Level - Low: 0.8V
  • Current - Output High, Low: 8mA, 8mA
  • Base Part Number: SN74AHCT
  • Current - Quiescent (Max): 1µA
  • Mounting Type: Surface Mount
  • Number of Inputs: 2
  • Voltage - Supply: 4.5V ~ 5.5V
  • Number of Circuits: 1
  • Packaging: Cut Tape (CT)
  • Logic Type: OR Gate
  • Supplier Device Package: SOT-23-5
  • Features: -
  • Logic Level - High: 2V
  • detail: OR Gate IC 1 Channel SOT-23-5
