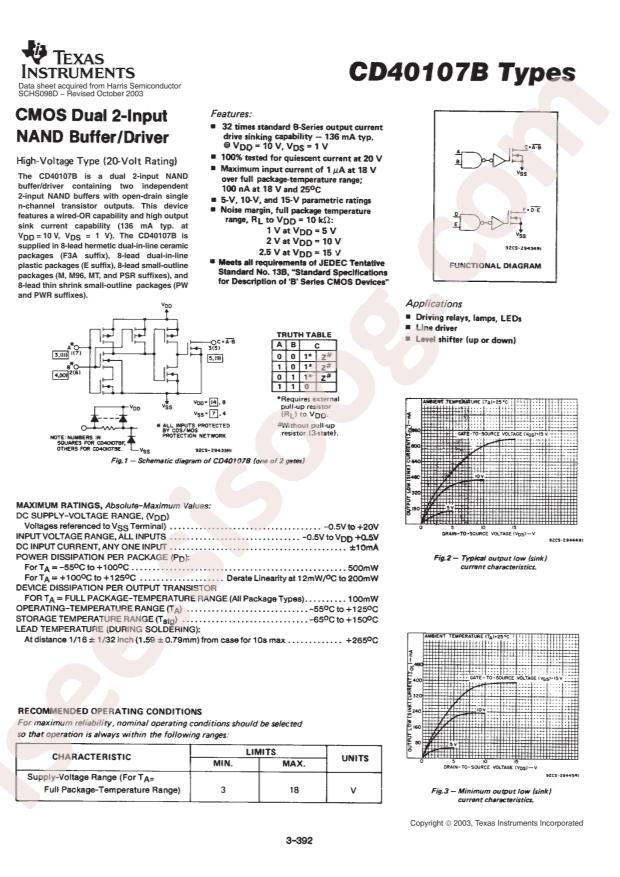

دیتاشیت CD40107BE
مشخصات دیتاشیت
| نام دیتاشیت |
CD40107B Types
|
| حجم فایل |
1651.883
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Series:
4000B
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments CD40107BE
-
Sink Current:
68mA
-
Source Current:
-
-
Supply Voltage:
3V~18V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
2
-
Low Level Range (VIL):
1.5V~4V
-
Operating Temperature:
-55°C~+125°C
-
High Level Range (VIH):
3.5V~11V
-
Propagation Delay Time:
100ns@15V,50pF
-
Quiescent Current (Max):
4uA
-
Package:
DIP-8
-
Manufacturer:
Texas Instruments
-
Mounting Type:
Through Hole
-
Logic Level - Low:
1.5V ~ 4V
-
Current - Quiescent (Max):
4µA
-
Voltage - Supply:
3V ~ 18V
-
Number of Circuits:
2
-
Packaging:
Tube
-
Package / Case:
8-DIP (0.300", 7.62mm)
-
Logic Level - High:
3.5V ~ 11V
-
Part Status:
Active
-
Current - Output High, Low:
-, 68mA
-
Features:
Open Drain
-
Base Part Number:
CD40107
-
Supplier Device Package:
8-PDIP
-
Number of Inputs:
2
-
Logic Type:
NAND Gate
-
Max Propagation Delay @ V, Max CL:
100ns @ 15V, 50pF
-
detail:
NAND Gate IC 2 Channel Open Drain 8-PDIP
