دیتاشیت TPS79225DBVR
مشخصات دیتاشیت
| نام دیتاشیت | TSP79201, 25, 28, 30 |
|---|---|
| حجم فایل | 1130.751 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت TSP79201, 25, 28, 30 |
TSP79201, 25, 28, 30 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS79225DBVR
- Output Current: 100mA
- Output Voltage: 2.5V
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Ground Current): 250uA

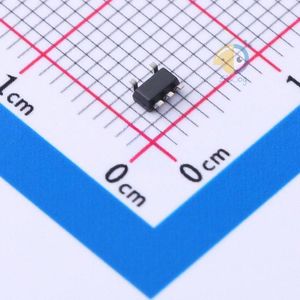

- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 5.5V
- Current - Quiescent (Iq): 250µA
- Output Configuration: Positive
- Base Part Number: TPS792
- Voltage - Output (Min/Fixed): 2.5V
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Series: -
- Packaging: Cut Tape (CT)
- PSRR: 70dB ~ 47dB (100Hz ~ 100kHz)
- Supplier Device Package: SOT-23-5
- Package / Case: SC-74A, SOT-753
- Number of Regulators: 1
- Part Status: Active
- Output Type: Fixed
- Control Features: Enable
- Voltage - Output (Max): -
- Mounting Type: Surface Mount
- Voltage Dropout (Max): -
- Current - Output: 100mA
- detail: Linear Voltage Regulator IC 1 Output 100mA SOT-23-5
