دیتاشیت CD74HC123E
مشخصات دیتاشیت
| نام دیتاشیت | CD54,74HC(T)123,423 |
|---|---|
| حجم فایل | 1102.933 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |

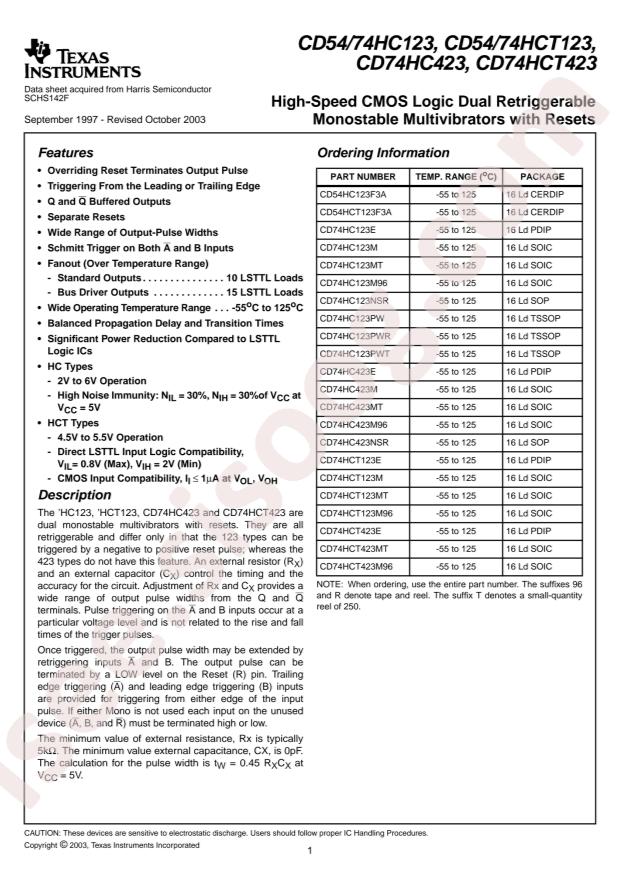

دانلود دیتاشیت CD54,74HC(T)123,423 |
CD54,74HC(T)123,423 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Monostable Multivibrators
- Datasheet: Texas Instruments CD74HC123E
- Input Type: -
- Logic Family: 74HC
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Logic Gate Type: Monostable
- Propagation Delay: 25ns
- Number Of Channels: 2
- OperatingTemperature: -55°C~+125°C
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Independent Circuits: 2
- Logic Type: Monostable
- Part Status: Active
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Current - Output High, Low: 5.2mA, 5.2mA
- Series: 74HC
- Base Part Number: 74HC123
- Supplier Device Package: 16-PDIP
- Schmitt Trigger Input: No
- Voltage - Supply: 2V ~ 6V
- detail: Monostable Multivibrator 25ns 16-PDIP
