دیتاشیت SN74HCT541N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HCT541, SN74HCT541 |
|---|---|
| حجم فایل | 1518.065 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت SN54HCT541, SN74HCT541 |

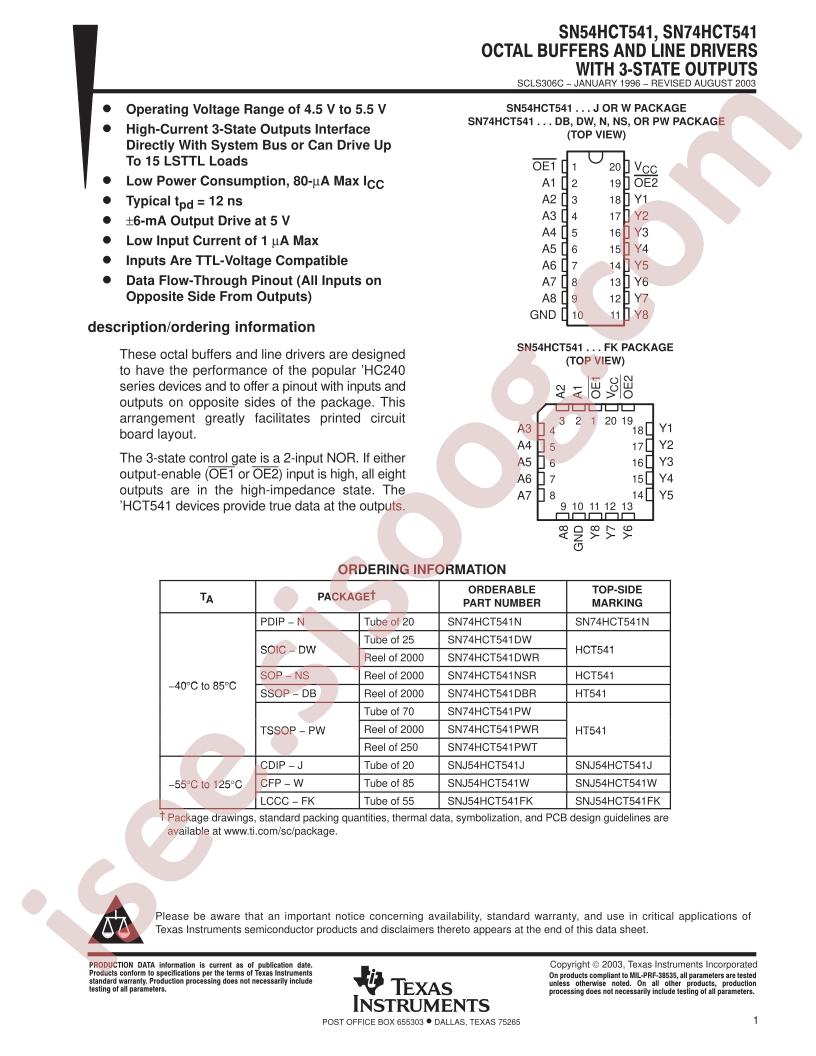

SN54HCT541, SN74HCT541 Datasheet |
|---|
مشخصات
- Number of Elements: 1
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.5V ~ 5.5V
- Input Type: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 20-DIP (0.300", 7.62mm)
- Number of Bits per Element: 8
- Part Status: Active
- Current - Output High, Low: 6mA, 6mA
- Series: 74HCT
- Output Type: 3-State
- Supplier Device Package: 20-PDIP
- Logic Type: Buffer, Non-Inverting
- Base Part Number: SN74HCT
- detail: Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-PDIP
