TPS76950DBVT دیتاشیت

TPS76950DBVT

مشخصات دیتاشیت

نام دیتاشیت TPS76950DBVT
حجم فایل 110.757 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

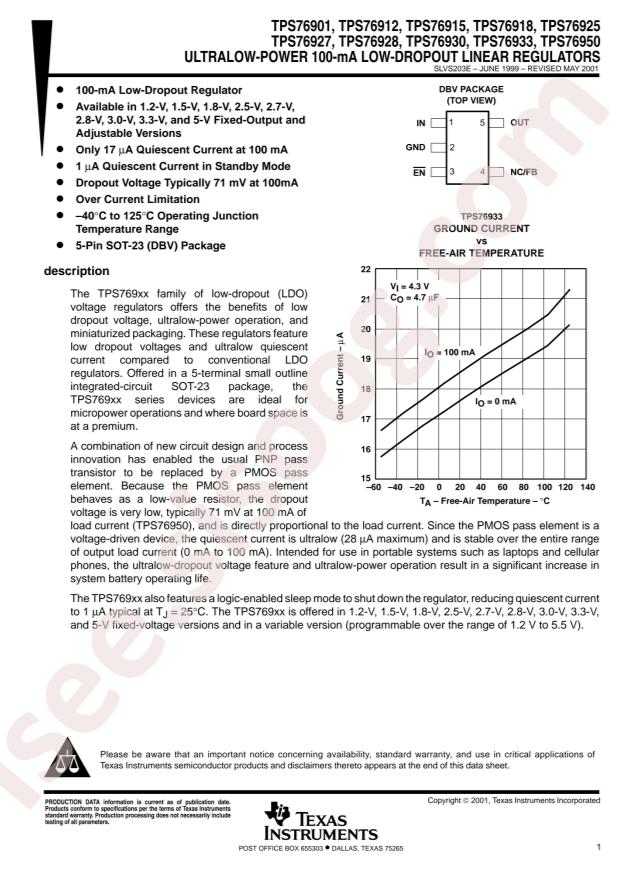

دانلود دیتاشیت TPS76950DBVT

دانلود دیتاشیت

سایر مستندات

TPS769xx 24 pages

TPS76950DBVT 16 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TPS76950DBVT
  • Output Current: 100mA
  • Output Voltage: 5V
  • Dropout Voltage: 0.17V@(100mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 10V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 28uA
  • Power Supply Rejection Ratio (PSRR): 60dB@(1kHz)
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 10V
  • Current - Quiescent (Iq): 28µA
  • Output Configuration: Positive
  • Base Part Number: TPS769
  • Voltage - Output (Min/Fixed): 5V
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Series: -
  • Packaging: Cut Tape (CT)
  • PSRR: 60dB (1kHz)
  • Supplier Device Package: SOT-23-5
  • Package / Case: SC-74A, SOT-753
  • Number of Regulators: 1
  • Part Status: Active
  • Output Type: Fixed
  • Control Features: Enable
  • Voltage - Output (Max): -
  • Mounting Type: Surface Mount
  • Voltage Dropout (Max): 0.17V @ 100mA
  • Current - Output: 100mA
  • detail: Linear Voltage Regulator IC 1 Output 100mA SOT-23-5
