دیتاشیت SN74LS38N
مشخصات دیتاشیت
| نام دیتاشیت | SN54,74(LS,S)38 Datasheet |
|---|---|
| حجم فایل | 1344.053 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |

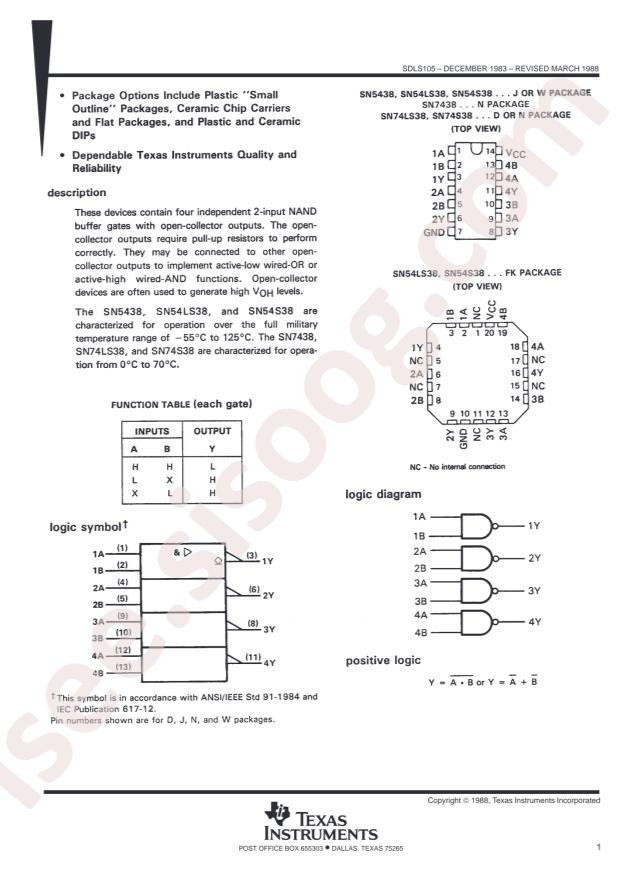

دانلود دیتاشیت SN54,74(LS,S)38 Datasheet |
SN54,74(LS,S)38 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LS
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LS38N
- Sink Current: 24mA
- Supply Voltage: 4.75V~5.25V
- Logic Gate Type: NAND Gates
- Number of Channels: 4
- Low Level Range (VIL): 0.8V
- Operating Temperature: 0°C~+70°C
- High Level Range (VIH): 2V
- Propagation Delay Time: 32ns@5V,45pF
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 0.8V
- Voltage - Supply: 4.75V ~ 5.25V
- Number of Circuits: 4
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 2V
- Part Status: Active
- Current - Output High, Low: -, 24mA
- Features: Open Collector
- Base Part Number: SN74LS38
- Supplier Device Package: 14-PDIP
- Number of Inputs: 2
- Logic Type: NAND Gate
- Max Propagation Delay @ V, Max CL: 32ns @ 5V, 45pF
- detail: NAND Gate IC 4 Channel Open Collector 14-PDIP
