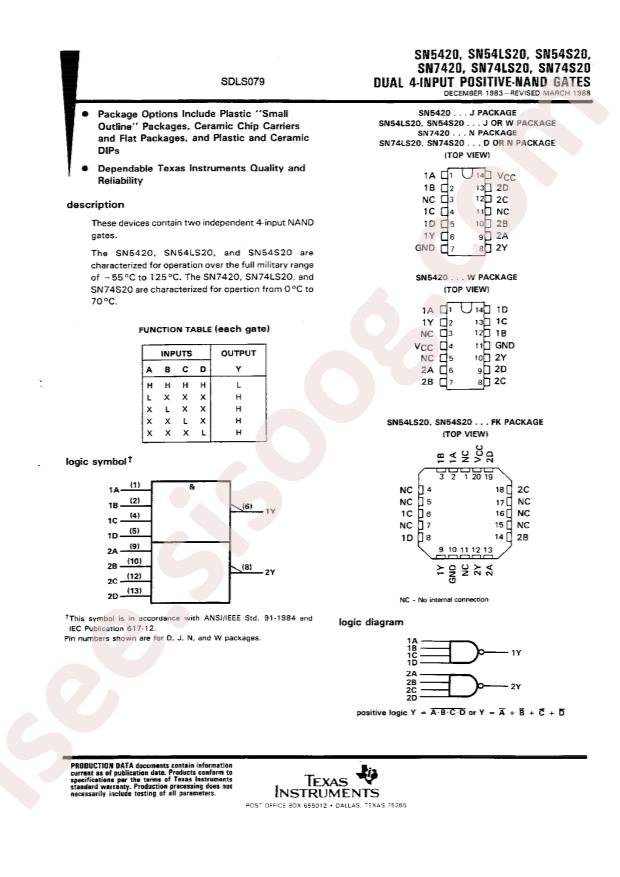

دیتاشیت SN74LS20N
مشخصات دیتاشیت
| نام دیتاشیت |
SN74LS20N
|
| حجم فایل |
68.586
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
21
|
مشخصات فنی
-
RoHS:
true
-
Series:
74LS
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74LS20N
-
Sink Current:
8mA
-
Source Current:
400uA
-
Supply Voltage:
4.75V~5.25V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
2
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
0°C~+70°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
15ns@5V,15pF
-
Quiescent Current (Max):
800uA
-
Package:
DIP-14
-
Manufacturer:
Texas Instruments
-
Mounting Type:
Through Hole
-
Logic Level - Low:
0.8V
-
Current - Quiescent (Max):
800µA
-
Voltage - Supply:
4.75V ~ 5.25V
-
Number of Circuits:
2
-
Packaging:
Tube
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Logic Level - High:
2V
-
Part Status:
Active
-
Current - Output High, Low:
400µA, 8mA
-
Features:
-
-
Base Part Number:
SN74LS20
-
Supplier Device Package:
14-PDIP
-
Number of Inputs:
4
-
Logic Type:
NAND Gate
-
Max Propagation Delay @ V, Max CL:
15ns @ 5V, 15pF
