دیتاشیت DRV8850RGYR

DRV8850

مشخصات دیتاشیت

نام دیتاشیت DRV8850
حجم فایل 3311.645 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت DRV8850

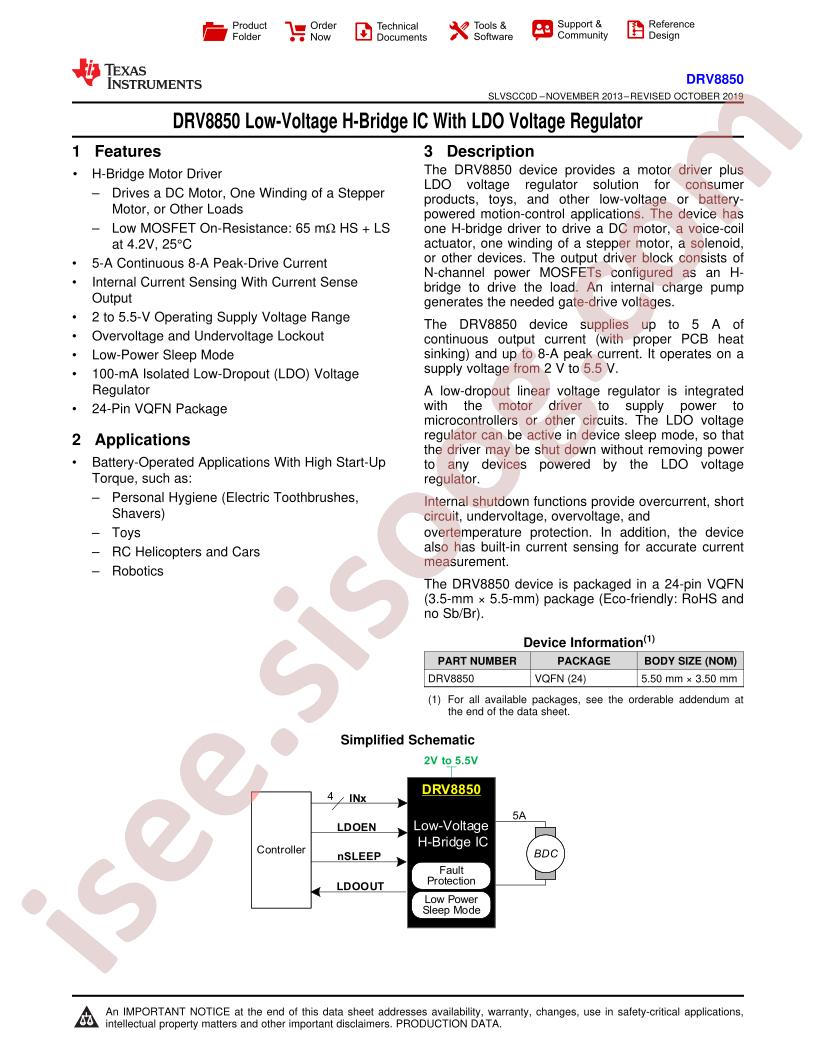

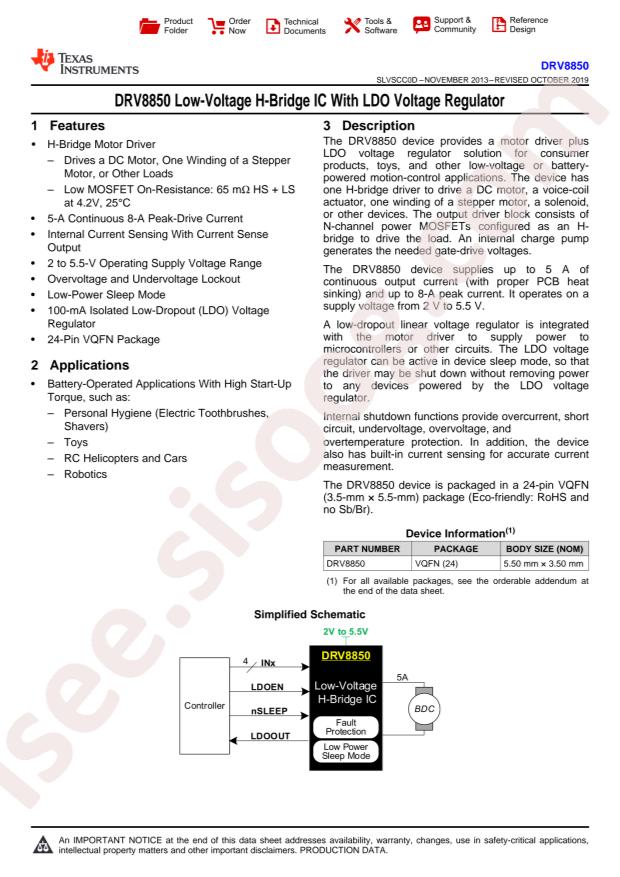

DRV8850 Datasheet

مشخصات

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8850RGYR
  • Interface: -
  • Output Current: 8A
  • Supply Voltage: 2V~5.5V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: VQFN-24-EP(3.5x5.5)
  • Manufacturer: Texas Instruments
  • Applications: DC Motors, General Purpose, Solenoids
  • Motor Type - AC, DC: Brushed DC
  • Motor Type - Stepper: Unipolar
  • Technology: NMOS
  • Series: -
  • Voltage - Supply: 2V ~ 5.5V
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Packaging: Cut Tape (CT)
  • Package / Case: 24-VFQFN Exposed Pad
  • Step Resolution: -
  • Voltage - Load: 2V ~ 5.5V
  • Part Status: Active
  • Output Configuration: Half Bridge
  • Base Part Number: DRV8850
  • Supplier Device Package: 24-VQFN (5.5x3.5)
  • Mounting Type: Surface Mount
  • Current - Output: 8A
  • detail: Unipolar Motor Driver NMOS Logic 24-VQFN (5.5x3.5)
