دیتاشیت TPS7201QDR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS72xxQ,Y
|
| حجم فایل |
1714.11
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
43
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:

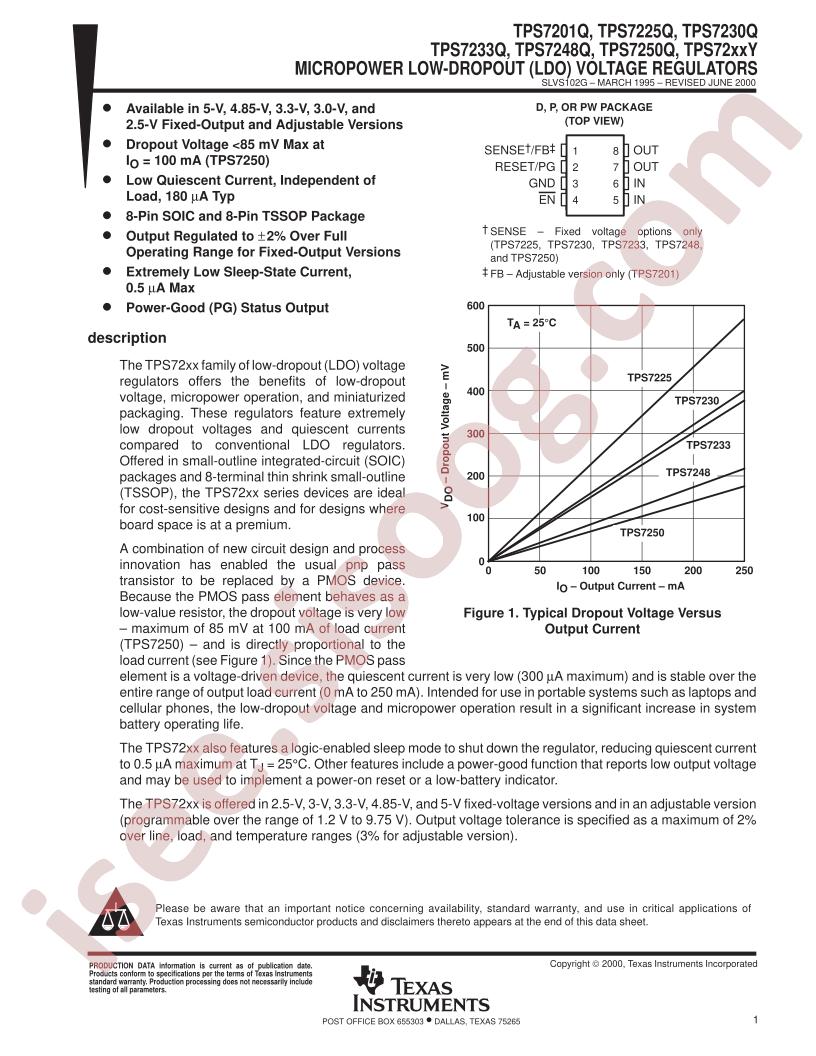

Texas Instruments TPS7201QDR
-
Output Type:
Adjustable
-
Output Current:
250mA
-
Output Voltage:
1.2V~9.75V
-
Dropout Voltage:
0.2V@(350mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
10V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
80uA
-
Package:
SOP-8
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
10V
-
Current - Quiescent (Iq):
80µA
-
Output Configuration:
Positive
-
Base Part Number:
TPS720
-
Voltage - Output (Min/Fixed):
1.2V
-
Protection Features:
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
PSRR:
85dB ~ 50dB (10Hz ~ 1MHz)
-
Supplier Device Package:
8-SOIC
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Number of Regulators:
1
-
Part Status:
Active
-
Control Features:
Enable
-
Voltage - Output (Max):
9.75V
-
Mounting Type:
Surface Mount
-
Voltage Dropout (Max):
0.2V @ 350mA
-
Current - Output:
250mA
-
detail:
Linear Voltage Regulator IC 1 Output 250mA 8-SOIC
