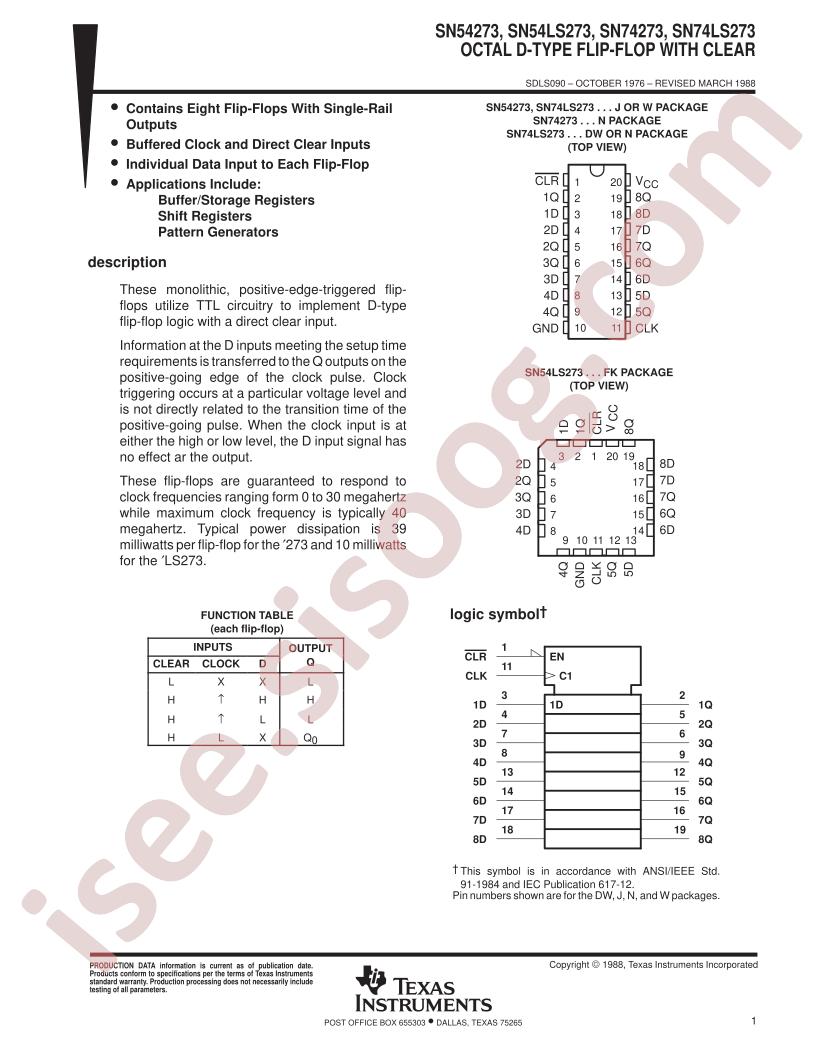

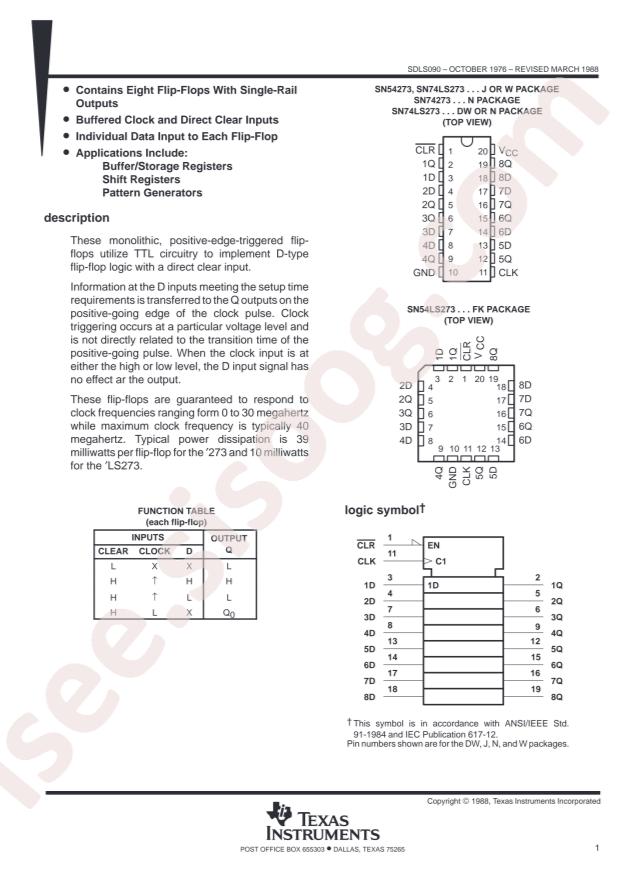

دیتاشیت SN74LS273N
مشخصات دیتاشیت
| نام دیتاشیت |
SN54(LS)273
|
| حجم فایل |
648.49
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Type:
D-Type
-
Series:
74LS
-
Category:
Logic ICs/Flip Flops
-
Function:
Reset
-
Datasheet:
Texas Instruments SN74LS273N
-
Output Type:
Non-Inverted
-
Sink Current:
8mA
-
Trigger Type:
上升沿
-
Source Current:
400uA
-
Supply Voltage:
4.75V~5.25V
-
Clock Frequency:
40MHz
-
Number of Elements:
1
-
Operating Temperature:
0°C~+70°C
-
Quiescent Current (Iq):
27mA
-
Maximum Propagation Delay:
27ns@5V,15pF
-
Number of Bits per Element:
8
-
Package:
PDIP-20
-
Manufacturer:
Texas Instruments
-
Voltage - Supply:
4.75V ~ 5.25V
-
Package / Case:
20-DIP (0.300", 7.62mm)
-
Packaging:
Tube
-
Current - Output High, Low:
400µA, 8mA
-
Part Status:
Active
-
Base Part Number:
SN74LS27
-
Supplier Device Package:
20-PDIP
-
Mounting Type:
Through Hole
-
Current - Quiescent (Iq):
27mA
-
Max Propagation Delay @ V, Max CL:
27ns @ 5V, 15pF
-
detail:
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
