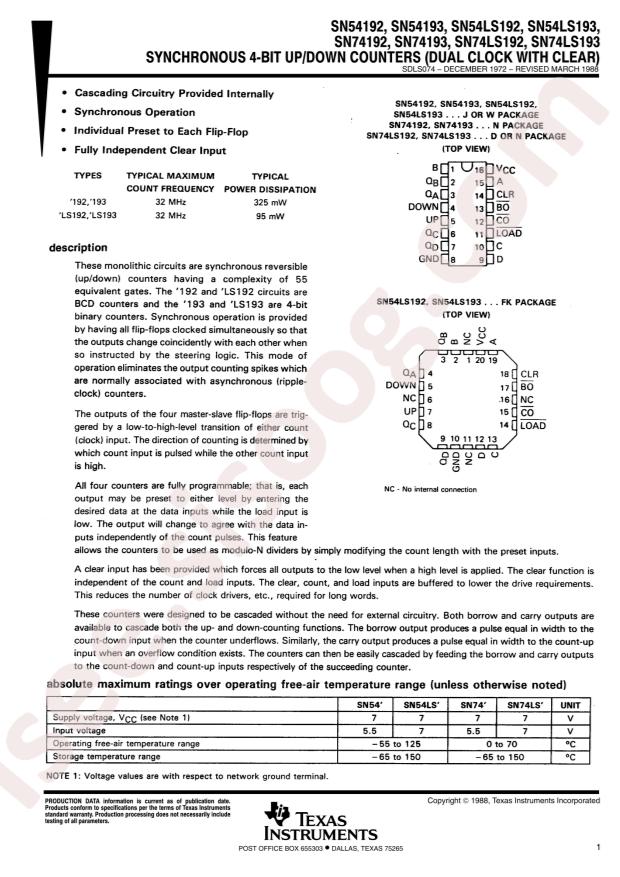

SN74LS193N Datasheet
Datasheet specifications
| Datasheet's name | SN74LS193N |
|---|---|
| File size | 119.637 KB |
| File type | |
| Number of pages | 27 |
Download Datasheet SN74LS193N |
Download Datasheet |
|---|
Other documentations
SN54,74(LS)192-93 27 pages
Technical specifications
- RoHS: true
- Category: Logic ICs/Counters / Dividers
- Datasheet: Texas Instruments SN74LS193N
- Direction: 向上计数器;向下计数器
- Count Rate: 32MHz
- Logic Type: Binary Counter
- Reset Style: Asynchronous
- Timing mode: Synchronous
- Trigger Type: Positive Edge
- Supply Voltage: 4.75V~5.25V
- Number of Elements: 1
- Operating Temperature: 0°C~+70°C
- Number of Bits per Element: 4
- Package: DIP-16
- Manufacturer: Texas Instruments
- Timing: Synchronous
- Reset: Asynchronous
- Voltage - Supply: 4.75V ~ 5.25V
- Part Status: Active
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Series: 74LS
- Supplier Device Package: 16-PDIP
- Base Part Number: SN74LS19
