دیتاشیت ISO7221CQDRQ1

مشخصات دیتاشیت

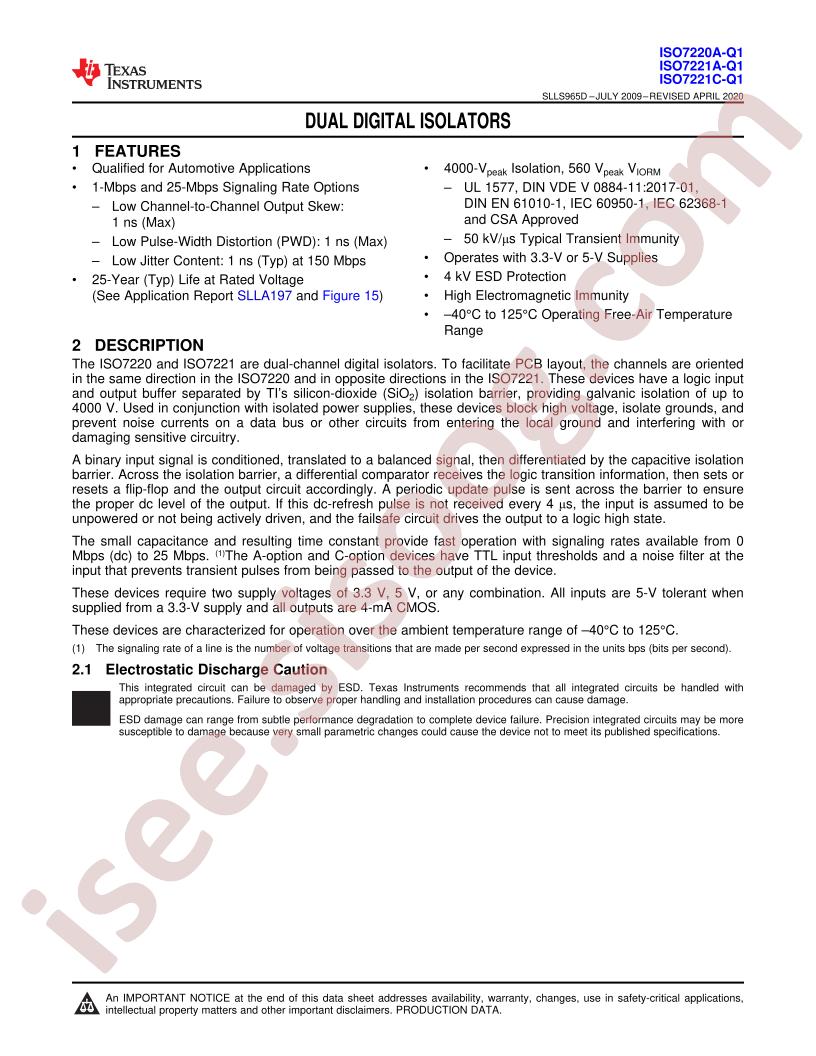

دانلود دیتاشیت ISO7220,21(A,C)-Q1	ISO7220,21(A,C)-Q1 Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators
Data Rate: 25Mbps

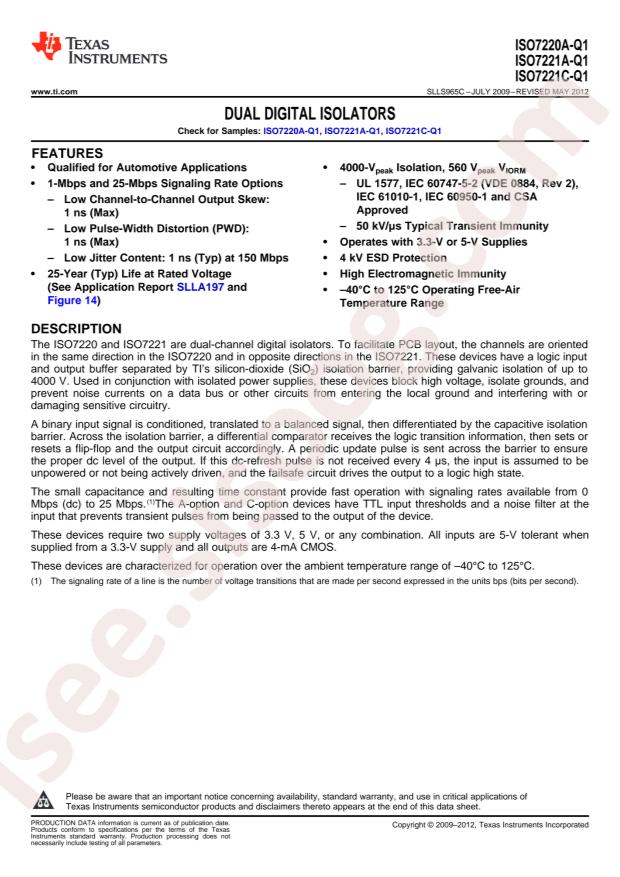

Datasheet: Texas Instruments ISO7221CQDRQ1
Applications: General-purpose
Supply Voltage: 3V~5.5V
Forward Channel: 1
Reverse channel: 1
Number of Channels: 2
Isolation Technology: 电容隔离
Operating Temperature: -40°C~+125°C
Voltage Isolation or Not: 带电压隔离
Package: SOP-8
Manufacturer: Texas Instruments
Propagation Delay tpLH / tpHL (Max): 42ns, 42ns
Channel Type: Unidirectional
Technology: Capacitive Coupling
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Packaging: Cut Tape (CT)
Type: General Purpose
Part Status: Active
Inputs - Side 1/Side 2: 1/1
Supplier Device Package: 8-SOIC
Common Mode Transient Immunity (Min): 25kV/µs
Isolated Power: No
Mounting Type: Surface Mount
Base Part Number: ISO7221
Rise / Fall Time (Typ): 1ns, 1ns
Series: Automotive, AEC-Q100
Voltage - Isolation: 4000Vpk
Pulse Width Distortion (Max): 2ns
Voltage - Supply: 3V ~ 5.5V
detail: General Purpose Digital Isolator 4000Vpk 2 Channel 25Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
