SN7425N دیتاشیت

SN7425N

مشخصات دیتاشیت

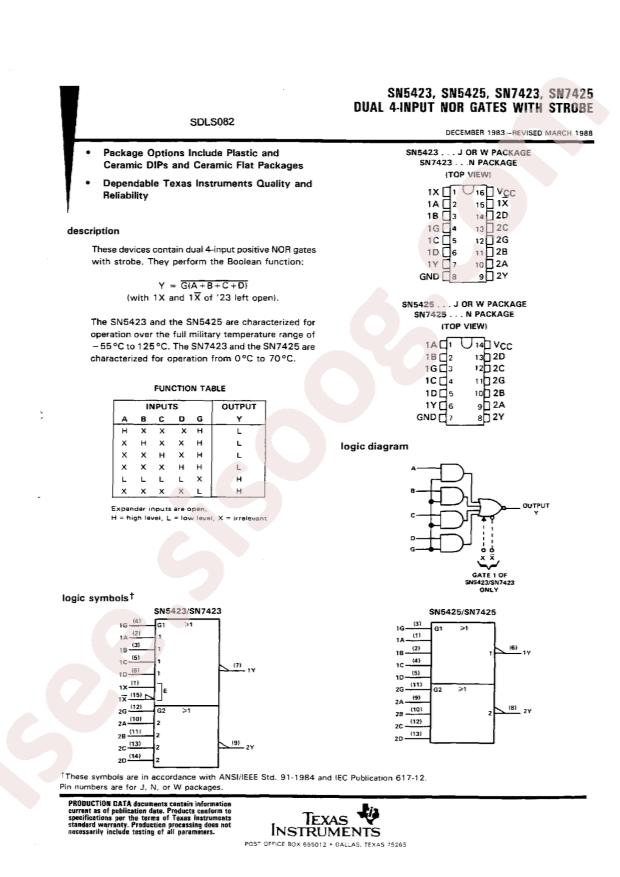

نام دیتاشیت SN7425N
حجم فایل 66.979 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت SN7425N

دانلود دیتاشیت

سایر مستندات

SN5423, SN5425, SN7423, SN7425 18 pages

مشخصات فنی

  • RoHS: true
  • Series: 7400
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN7425N
  • Sink Current: 16mA
  • Source Current: 800uA
  • Supply Voltage: 4.75V~5.25V
  • Logic Gate Type: NORGate
  • Number of Channels: 2
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: 0°C~+70°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 22ns@5V,15pF
  • Package: PDIP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Logic Level - Low: 0.8V
  • Voltage - Supply: 4.75V ~ 5.25V
  • Number of Circuits: 2
  • Packaging: Tube
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Logic Level - High: 2V
  • Part Status: Active
  • Current - Output High, Low: 800µA, 16mA
  • Features: Strobe
  • Base Part Number: SN742
  • Supplier Device Package: 14-PDIP
  • Number of Inputs: 4
  • Logic Type: NOR Gate
  • Max Propagation Delay @ V, Max CL: 22ns @ 5V, 15pF
  • detail: NOR Gate IC 2 Channel Strobe 14-PDIP
