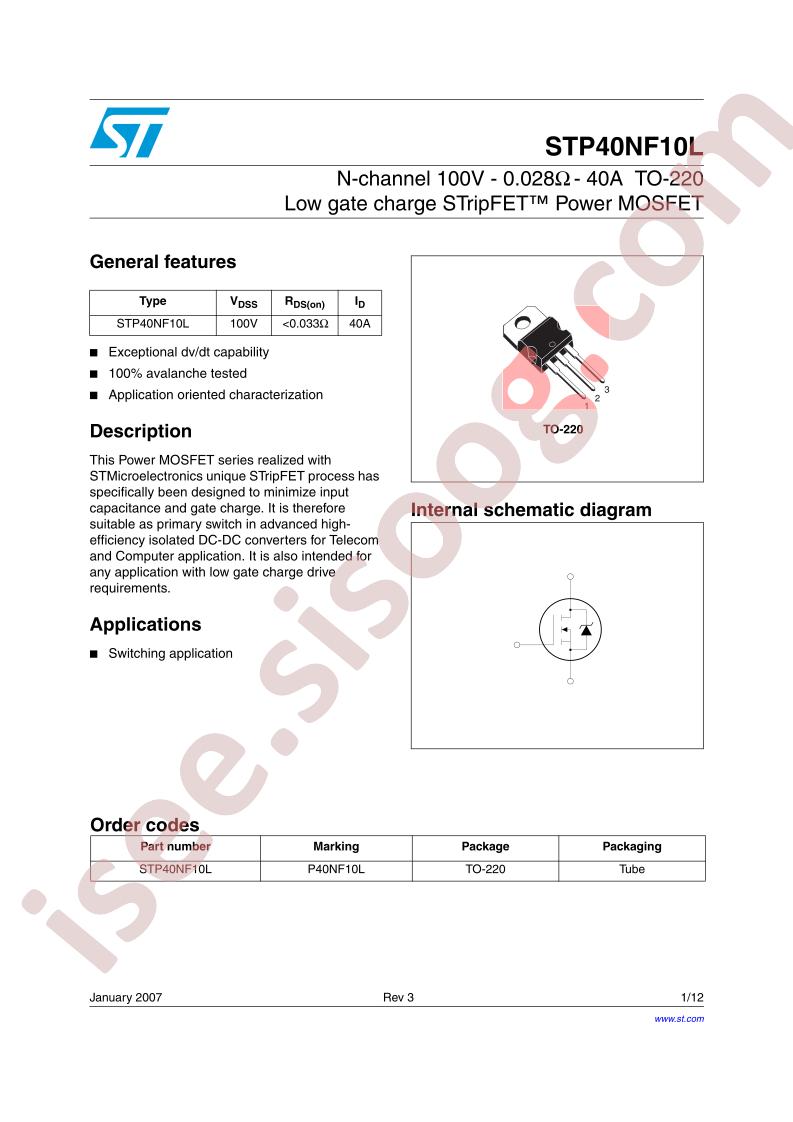

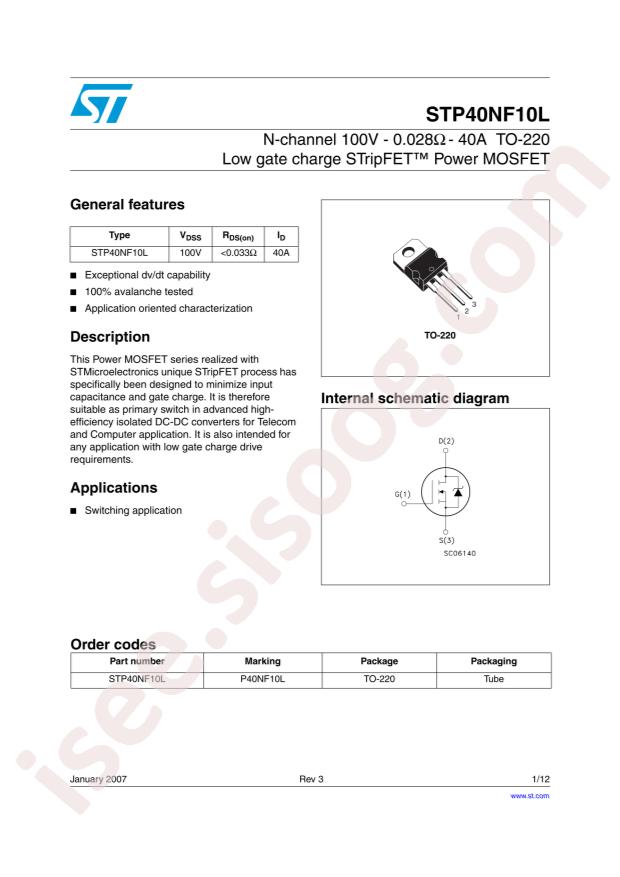

دیتاشیت STP40NF10L
مشخصات دیتاشیت
| نام دیتاشیت |
STP40NF10L
|
| حجم فایل |
238.895
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STP40NF10L
-
Operating Temperature:
-65°C~+175°C@(Tj)
-
Power Dissipation (Pd):
150W
-
Total Gate Charge (Qg@Vgs):
64nC@5V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
2300pF@25V
-
Continuous Drain Current (Id):
40A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
125pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
28mΩ@10V,20A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
40A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
33mOhm @ 20A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
64nC @ 5V
-
Vgs (Max):
±17V
-
Input Capacitance (Ciss) (Max) @ Vds:
2300pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
150W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220AB
-
Package / Case:
TO-220-3
-
Base Part Number:
STP40N
-
detail:
N-Channel 100V 40A (Tc) 150W (Tc) Through Hole TO-220AB
