SN74ALS133N دیتاشیت

SN74ALS133N

مشخصات دیتاشیت

نام دیتاشیت SN74ALS133N
حجم فایل 61.124 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

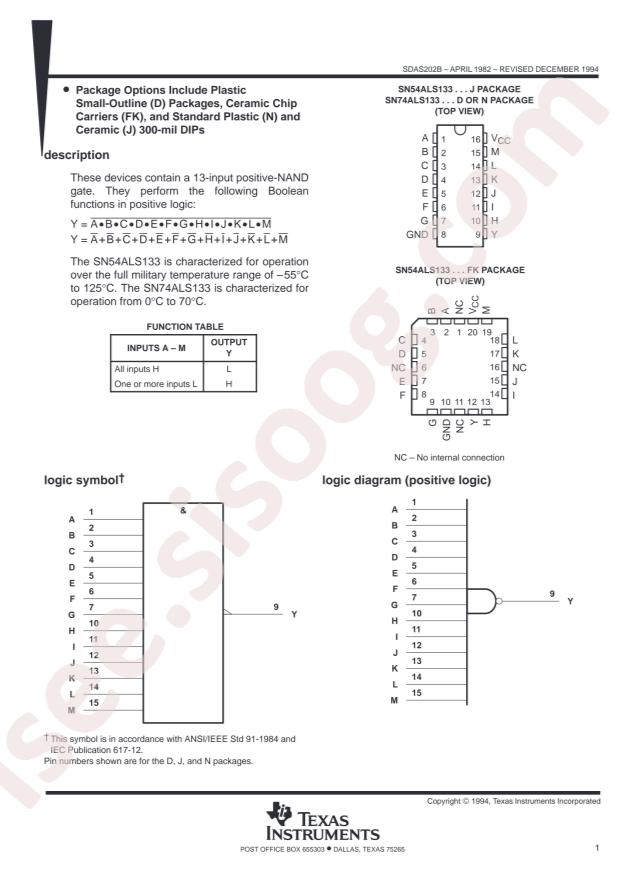

دانلود دیتاشیت SN74ALS133N

دانلود دیتاشیت

سایر مستندات

SN54ALS133, SN74ALS133 16 pages

مشخصات فنی

  • RoHS: true
  • Series: 74ALS
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74ALS133N
  • Sink Current: 8mA
  • Source Current: 400uA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: NAND Gates
  • Number of Channels: 1
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: 0°C~+70°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 25ns@5V,50pF
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Logic Level - Low: 0.8V
  • Voltage - Supply: 4.5V ~ 5.5V
  • Number of Circuits: 1
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Logic Level - High: 2V
  • Part Status: Active
  • Current - Output High, Low: 400µA, 8mA
  • Features: -
  • Base Part Number: SN74ALS1
  • Supplier Device Package: 16-PDIP
  • Number of Inputs: 13
  • Logic Type: NAND Gate
  • Max Propagation Delay @ V, Max CL: 25ns @ 5V, 50pF
  • detail: NAND Gate IC 1 Channel 16-PDIP
