دیتاشیت SN74LS299N
مشخصات دیتاشیت
| نام دیتاشیت | SN54/74(LS,S)299 |
|---|---|
| حجم فایل | 937.091 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت SN54/74(LS,S)299 |

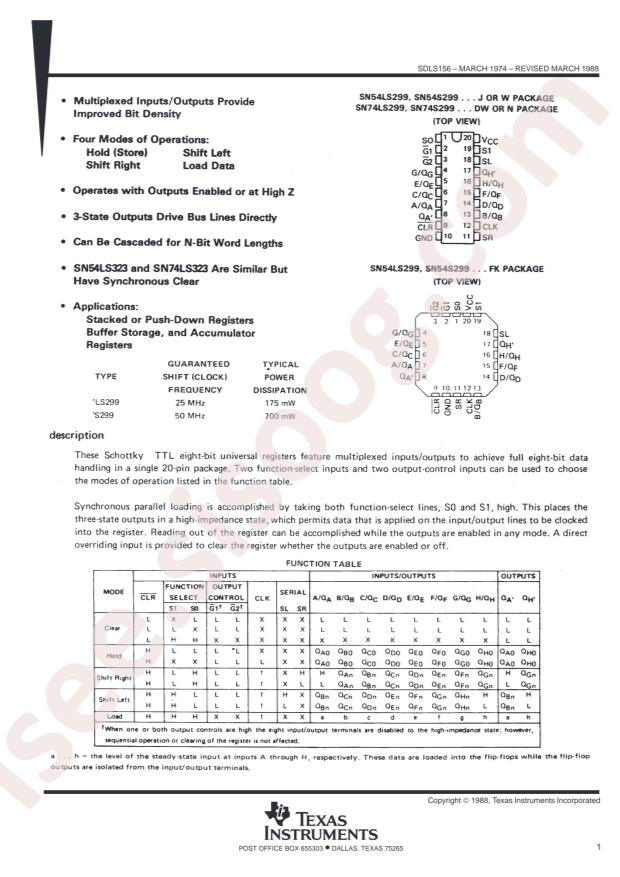

SN54/74(LS,S)299 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LS
- Category: Logic ICs/Shifting Register
- Datasheet: Texas Instruments SN74LS299N
- Output Type: Tri-State
- Supply Voltage: 4.75V~5.25V
- Number of Elements: 1
- Operating Temperature: 0°C~+70°C
- Number of Bits per Element: 8
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.75V ~ 5.25V
- Part Status: Active
- Function: Universal
- Packaging: Tube
- Package / Case: 20-DIP (0.300", 7.62mm)
- Supplier Device Package: 20-PDIP
- Mounting Type: Through Hole
- Logic Type: Shift Register
- Base Part Number: SN74LS29
- detail: Shift Shift Register 1 Element 8 Bit 20-PDIP
