دیتاشیت STGF20NB60S

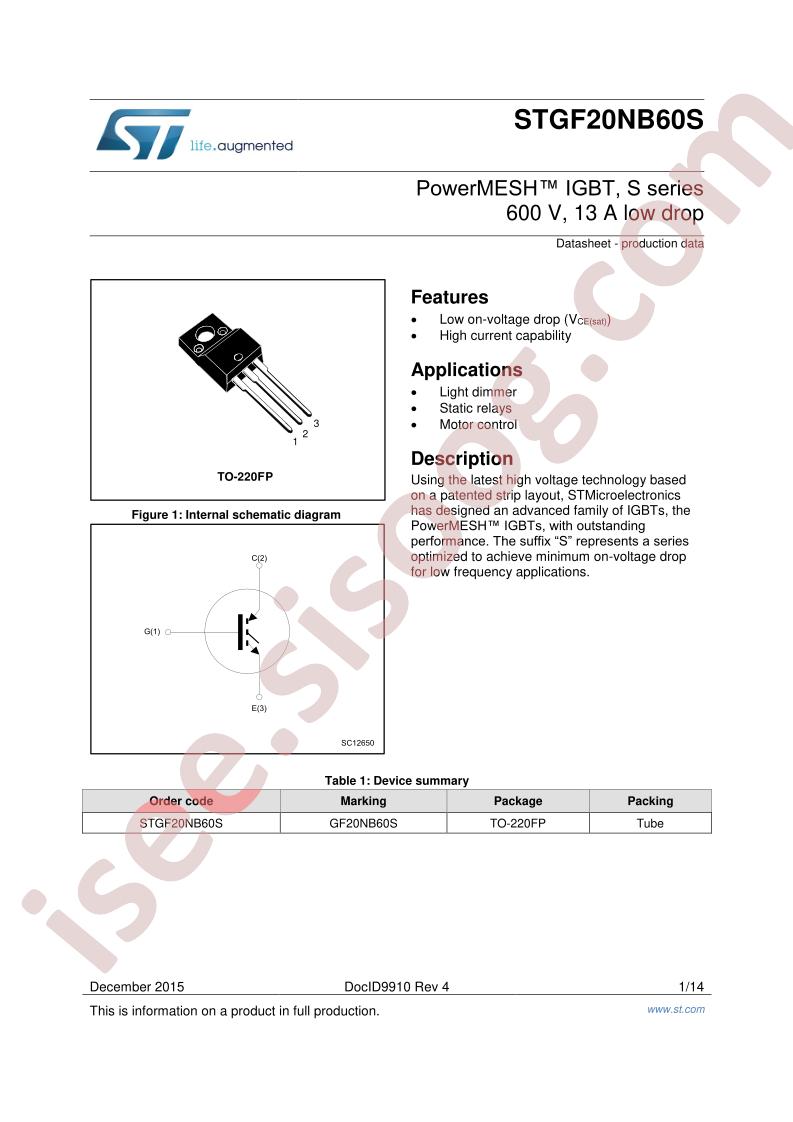

مشخصات دیتاشیت
| نام دیتاشیت |
STGF20NB60S
|
| حجم فایل |
745.81
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
24A
-
Current - Collector Pulsed (Icm):
70A
-
Vce(on) (Max) @ Vge, Ic:
1.7V @ 15V, 20A
-
Power - Max:
40W
-
Switching Energy:
840µJ (on), 7.4mJ (off)
-
Input Type:
Standard
-
Gate Charge:
83nC
-
Td (on/off) @ 25°C:
92ns/1.1µs
-
Test Condition:
480V, 20A, 100Ohm, 15V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220FP
-
Base Part Number:
STGF20
