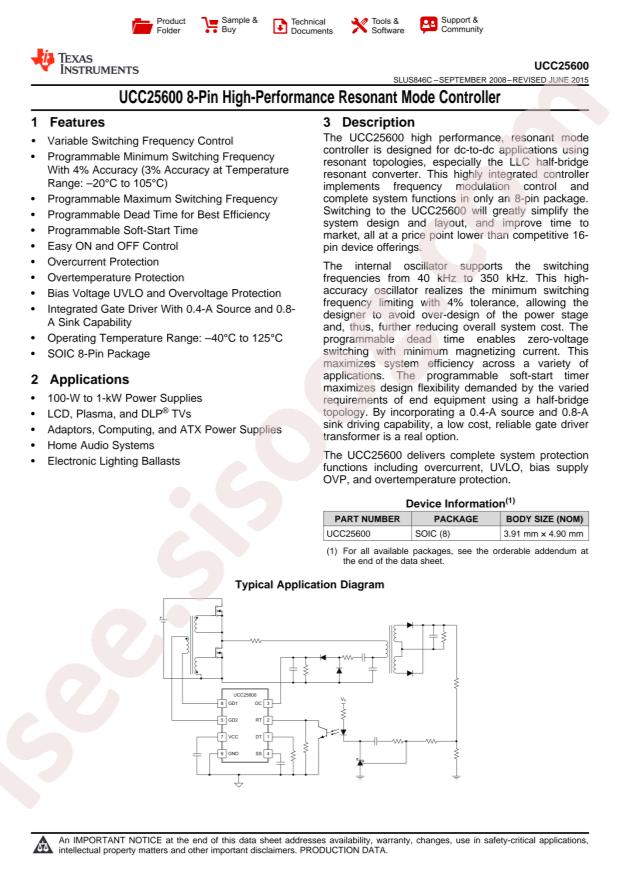

دیتاشیت UCC25600D
مشخصات دیتاشیت
| نام دیتاشیت |
UCC25600
|
| حجم فایل |
3798.835
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/AC-DC Controllers & Regulators
-
Topology:
Half-Bridge
-
Datasheet:
Texas Instruments UCC25600D
-
Supply Voltage:
11.5V~18V
-
Switching Frequency:
40kHz~350kHz
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Package:
SOP-8
-
Manufacturer:
Texas Instruments
-
Part Status:
Active
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Packaging:
Tube
-
Frequency - Switching:
40kHz ~ 350kHz
-
Supplier Device Package:
8-SOIC
-
Number of Outputs:
2
-
Serial Interfaces:
-
-
Synchronous Rectifier:
No
-
Function:
Step-Up/Step-Down
-
Clock Sync:
No
-
Mounting Type:
Surface Mount
-
Output Configuration:
Positive, Isolation Capable
-
Base Part Number:
UCC256
-
Series:
-
-
Output Type:
Transistor Driver
-
Control Features:
Current Limit, Frequency Control, Soft Start
-
Output Phases:
1
-
Duty Cycle (Max):
-
-
Voltage - Supply (Vcc/Vdd):
11.5V ~ 18V
