دیتاشیت SN74S374N
مشخصات دیتاشیت
| نام دیتاشیت | SN54LS/S373-74, SN74LS/S373-74 |
|---|---|
| حجم فایل | 1607.235 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
دانلود دیتاشیت SN54LS/S373-74, SN74LS/S373-74 |

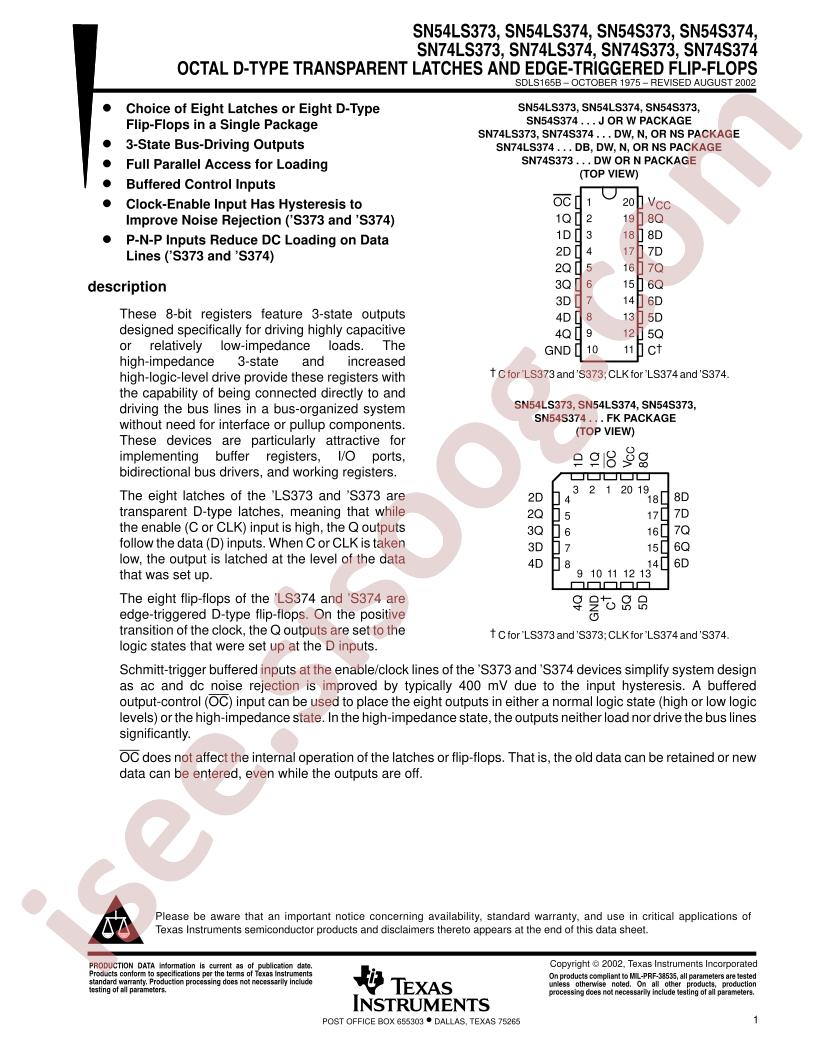

SN54LS/S373-74, SN74LS/S373-74 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: D-Type
- Series: 74S
- Category: Logic ICs/Flip Flops
- Function: -
- Datasheet: Texas Instruments SN74S374N
- Output Type: Tri-State;Non-Inverted
- Trigger Type: 上升沿
- Source Current: 6.5mA
- Supply Voltage: 4.75V~5.25V
- Clock Frequency: 100MHz
- Number of Elements: 1
- Operating Temperature: 0°C~+70°C
- Quiescent Current (Iq): 110mA
- Maximum Propagation Delay: 17ns@5V,15pF
- Number of Bits per Element: 8
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.75V ~ 5.25V
- Package / Case: 20-DIP (0.300", 7.62mm)
- Packaging: Tube
- Current - Output High, Low: 6.5mA, -
- Part Status: Active
- Base Part Number: SN74S3
- Supplier Device Package: 20-PDIP
- Mounting Type: Through Hole
- Current - Quiescent (Iq): 110mA
- Max Propagation Delay @ V, Max CL: 17ns @ 5V, 15pF
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
