دیتاشیت CD74HC191E
مشخصات دیتاشیت
| نام دیتاشیت | CD54,74HC(T)190,191 |
|---|---|
| حجم فایل | 1353.557 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
دانلود دیتاشیت CD54,74HC(T)190,191 |

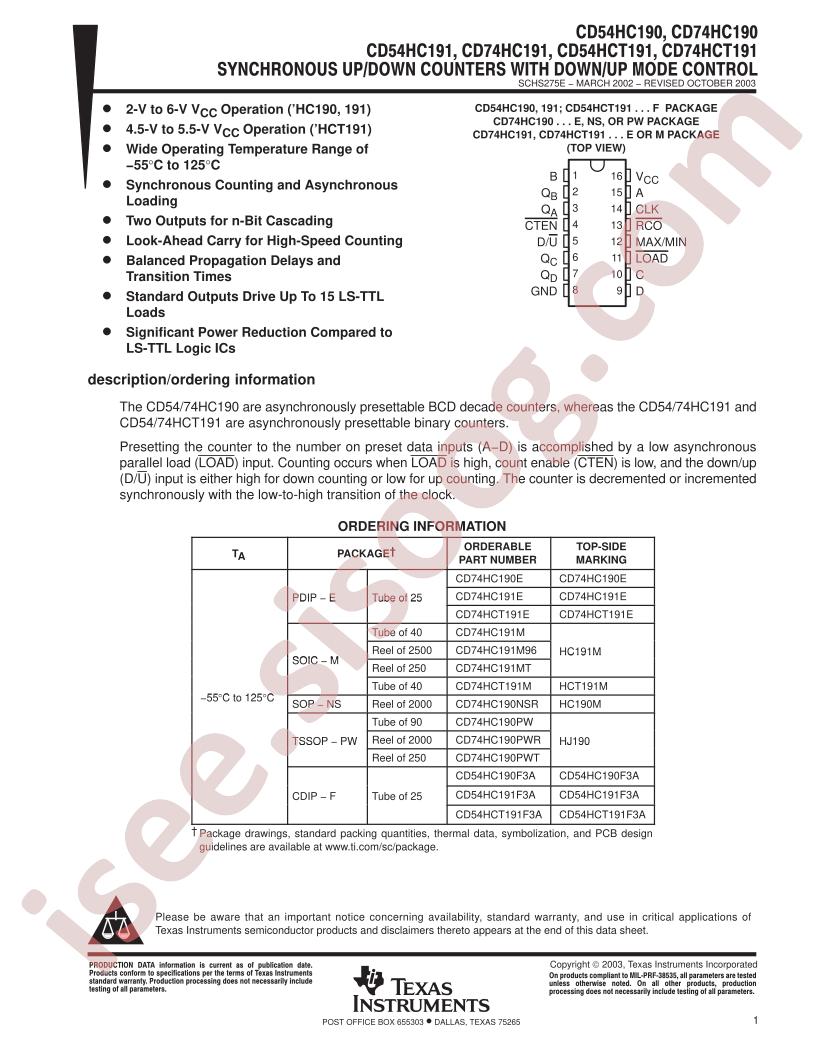

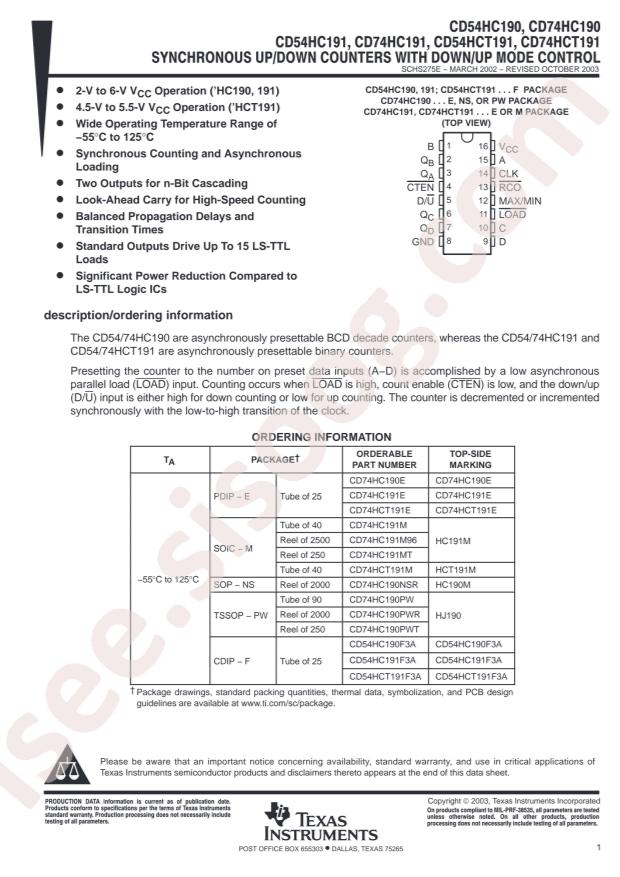

CD54,74HC(T)190,191 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Counters / Dividers
- Datasheet: Texas Instruments CD74HC191E
- Direction: 向上计数器;向下计数器
- Count Rate: 35MHz
- Logic Type: Binary Counter
- Reset Style: Asynchronous
- Timing mode: Synchronous
- Trigger Type: Positive Edge
- Supply Voltage: 2V~6V
- Number of Elements: 1
- Operating Temperature: -55°C~+125°C
- Number of Bits per Element: 4
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Timing: Synchronous
- Reset: -
- Voltage - Supply: 2V ~ 6V
- Part Status: Active
- Mounting Type: Through Hole
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Series: 74HC
- Supplier Device Package: 16-PDIP
- Base Part Number: 74HC191
- detail: Counter IC Binary Counter 1 Element 4 Bit Positive Edge 16-PDIP
