دیتاشیت SN74HC05PWR

SN54HC05, SN74HC05

مشخصات دیتاشیت

نام دیتاشیت SN54HC05, SN74HC05
حجم فایل 1301.994 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت SN54HC05, SN74HC05

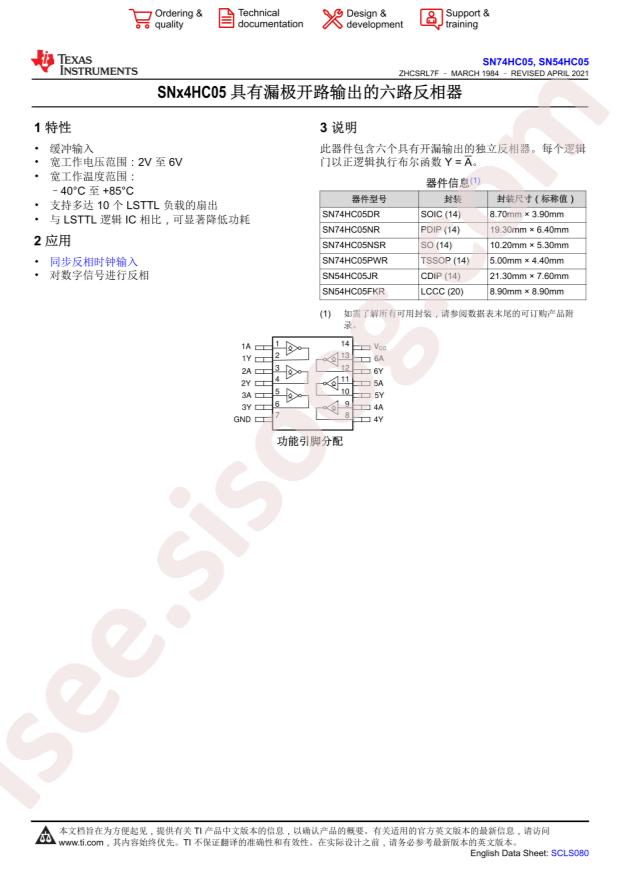

SN54HC05, SN74HC05 Datasheet

مشخصات

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74HC05PWR
  • Sink Current: 5.2mA
  • Number of Inputs: 1
  • Number of Circuits: 6
  • Supply Current (Max): 2uA
  • Low level range (VIL): 0.5V~1.8V
  • Max Propagation Delay: 20ns@6V,50pF
  • Operating Temperature: -40°C~+85°C
  • High level range (VIH): 1.5V~4.2V
  • Supply Voltage(Single): 2V~6V
  • Package: TSSOP-14
  • Manufacturer: Texas Instruments
  • Logic Level - High: 1.5V ~ 4.2V
  • Base Part Number: SN74HC0
  • Supplier Device Package: 14-TSSOP
  • Logic Level - Low: 0.5V ~ 1.8V
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Current - Quiescent (Max): 2µA
  • Current - Output High, Low: -, 5.2mA
  • Features: Open Drain
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 2V ~ 6V
  • Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF
  • Part Status: Active
  • Logic Type: Inverter
  • detail: Inverter IC 6 Channel Open Drain 14-TSSOP
