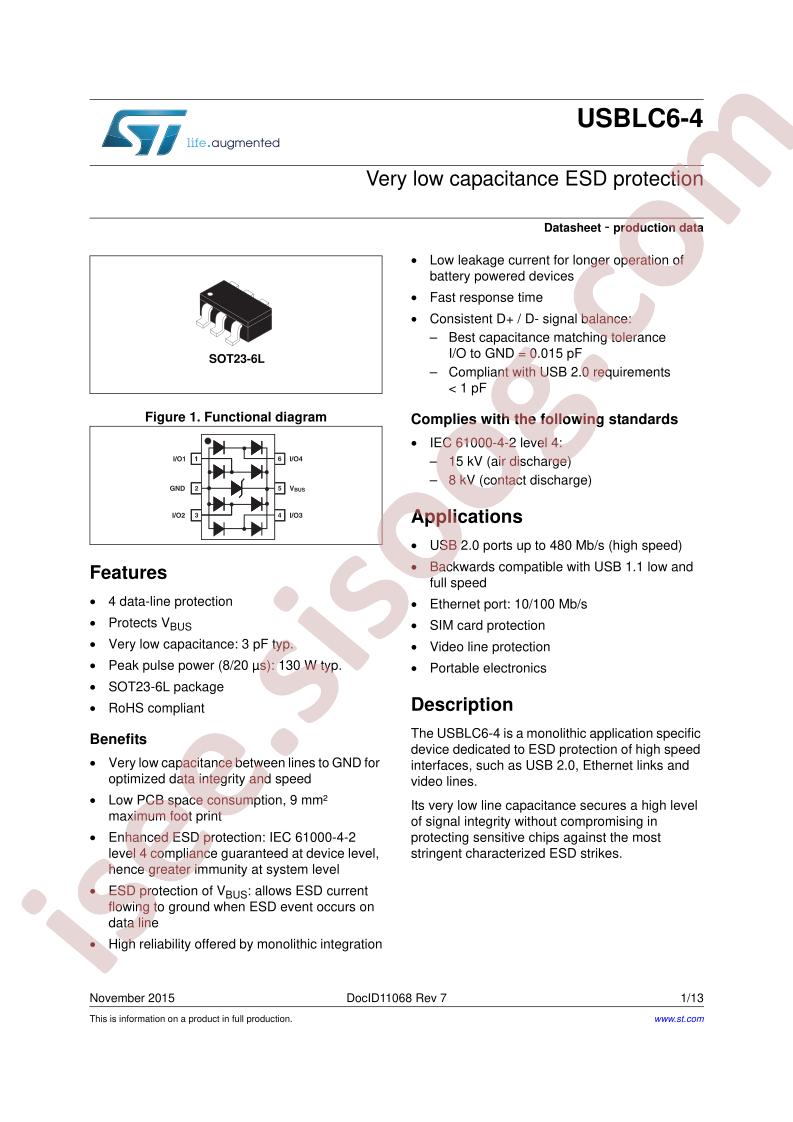

دیتاشیت USBLC6-4SC6
مشخصات دیتاشیت
| نام دیتاشیت |
USBLC6-4
|
| حجم فایل |
290.856
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Polarity:
Unidirectional
-
Datasheet:
STMicroelectronics USBLC6-4SC6
-
Clamping Voltage@Ipp:
17V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Breakdown Voltage (VBR):
6V
-
Peak Pulse Power(Ppp)@8/20us:
-
-
Junction Capacitance(Cj)@1MHz:
-
-
Peak Pulse Current(Ipp)@8/20us:
5A
-
Reverse Stand-Off Voltage (Vrwm):
5.25V
-
Package:
SOT-23-6
-
Manufacturer:
STMicroelectronics
-
Series:
USB
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Steering (Rail to Rail)
-
Unidirectional Channels:
4
-
Voltage - Reverse Standoff (Typ):
5.25V
-
Voltage - Breakdown (Min):
6V
-
Voltage - Clamping (Max) @ Ipp:
17V
-
Current - Peak Pulse (10/1000µs):
5A (8/20µs)
-
Power - Peak Pulse:
-
-
Power Line Protection:
Yes
-
Applications:
Ethernet
-
Capacitance @ Frequency:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-6
-
Supplier Device Package:
SOT-23-6
-
Base Part Number:
USBLC
-
detail:
17V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6
