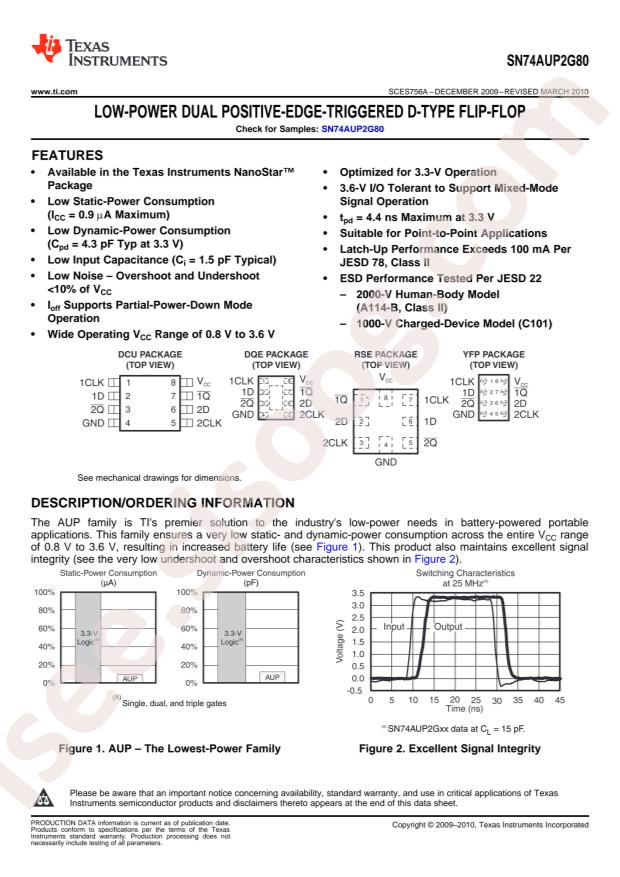

دیتاشیت SN74AUP2G80DCUR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74AUP2G80
|
| حجم فایل |
1229.31
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
RoHS:
true
-
Type:
D-Type
-
Series:
74AUP
-
Category:
Logic ICs/Flip Flops
-
Function:
Standard
-
Datasheet:
Texas Instruments SN74AUP2G80DCUR
-
Output Type:
Inverted
-
Sink Current:
4mA
-
Trigger Type:
上升沿
-
Source Current:
4mA
-
Supply Voltage:
0.8V~3.6V
-
Clock Frequency:
257MHz
-
Input Capacitance:
1.5pF
-
Quiescent Current (Iq):
500nA
-
Maximum Propagation Delay:
6.4ns@3.3V,30pF
-
Package:
VSSOP-8
-
Manufacturer:
Texas Instruments
-
Number of Elements:
2
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Supplier Device Package:
8-VSSOP
-
Current - Output High, Low:
4mA, 4mA
-
Voltage - Supply:
0.8V ~ 3.6V
-
Current - Quiescent (Iq):
500nA
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Number of Bits per Element:
1
-
Max Propagation Delay @ V, Max CL:
6.4ns @ 3.3V, 30pF
-
Base Part Number:
SN74AUP
-
Part Status:
Active
-
Package / Case:
8-VFSOP (0.091", 2.30mm Width)
-
detail:
Flip Flop 2 Element D-Type 1 Bit Positive Edge 8-VFSOP (0.091", 2.30mm Width)
