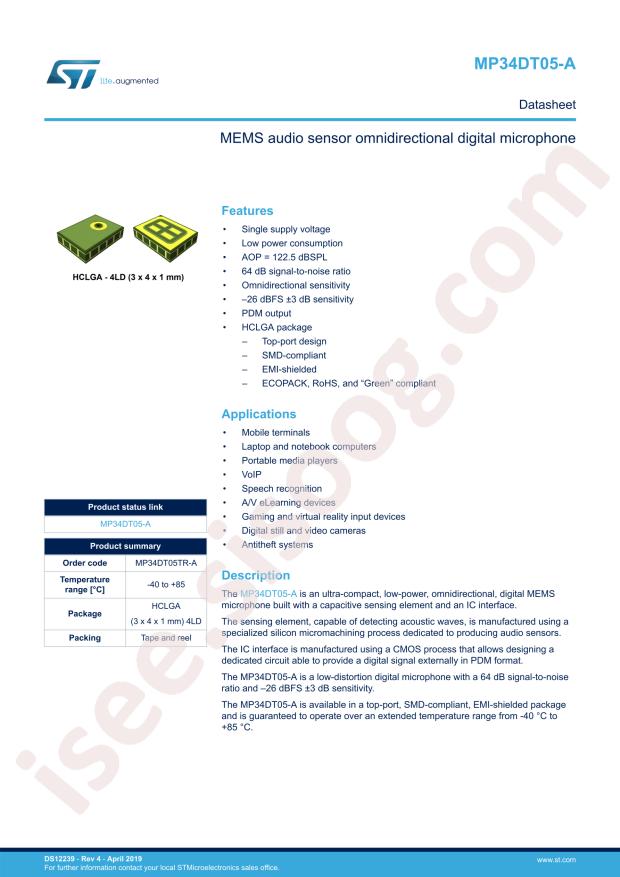

دیتاشیت MP34DT05TR-A

MP34DT05

مشخصات دیتاشیت

نام دیتاشیت MP34DT05
حجم فایل 544.418 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت MP34DT05

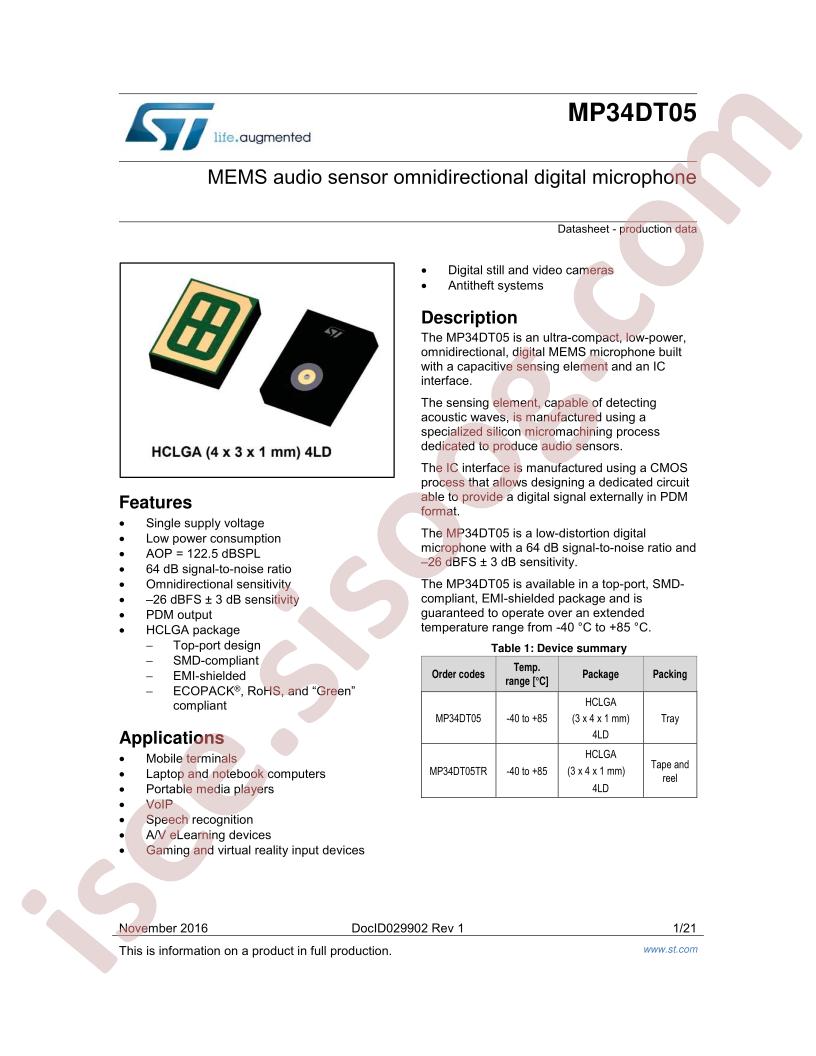

MP34DT05 Datasheet

مشخصات

  • RoHS: true
  • Category: Audio Components/Vibration Motors/MEMS Microphones
  • Datasheet: STMicroelectronics MP34DT05TR-A
  • Direction: Omnidirectional
  • Impedance: -
  • Sensitivity: -26dB
  • Supply Voltage: 1.8V
  • Current Consumption: 650uA
  • SNR(Signal to Noise Ratio): 64dB
  • Package: LGA-5(3x4)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Type: MEMS (Silicon)
  • Output Type: Digital, PDM
  • Frequency Range: 100Hz ~ 10kHz
  • S/N Ratio: 64dB
  • Voltage - Rated: 1.8V
  • Voltage Range: 1.6V ~ 3.6V
  • Current - Supply: 650µA
  • Port Location: Top
  • Termination: Solder Pads
  • Size / Dimension: 0.157" L x 0.118" W (4.00mm x 3.00mm)
  • Height (Max): 0.043" (1.10mm)
  • Shape: Rectangular
  • Base Part Number: MP34
  • detail: 100Hz ~ 10kHz Digital, PDM Microphone MEMS (Silicon) 1.6V ~ 3.6V Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads
