دیتاشیت SN74AS04NSR
مشخصات دیتاشیت
| نام دیتاشیت | SN(54,74)(ALS,AS)04(B) |
|---|---|
| حجم فایل | 1215.53 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت SN(54,74)(ALS,AS)04(B) |

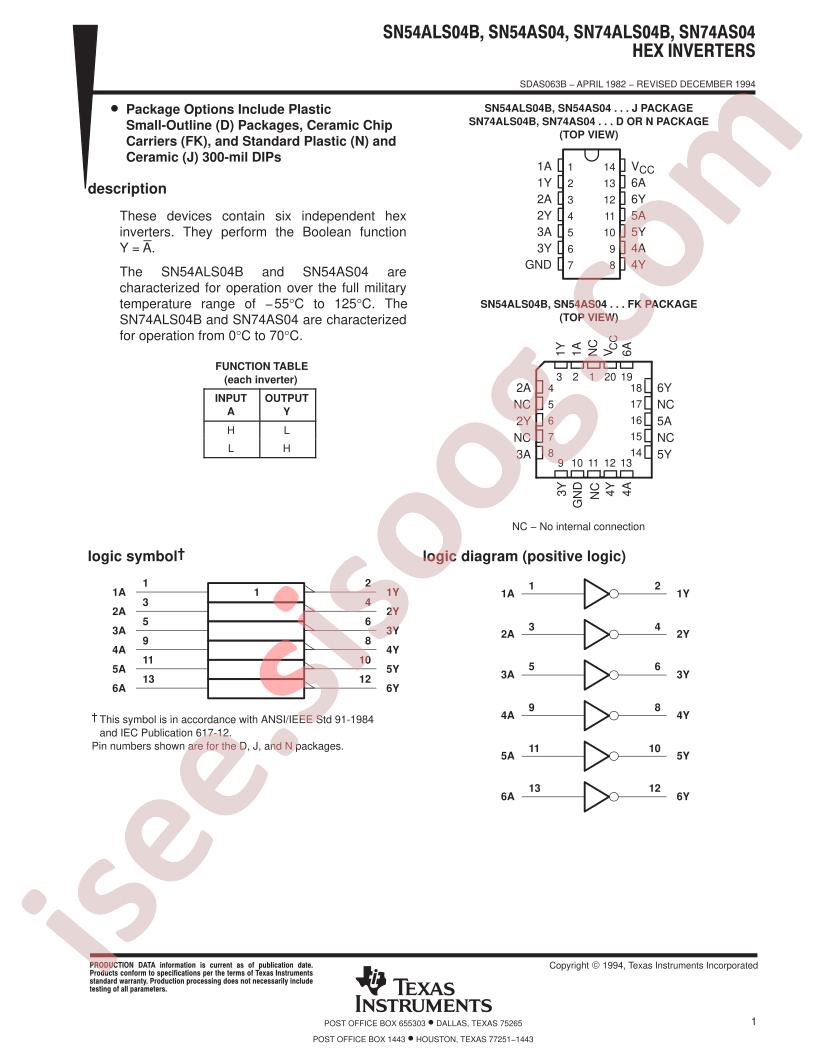

SN(54,74)(ALS,AS)04(B) Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74AS
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN74AS04NSR
- Sink Current: 20mA
- Source Current: 2mA
- Number of channels: 6
- Low level range (VIL): 0.8V
- Max Propagation Delay: 5ns@5V,50pF
- Operating Temperature: 0°C~+70°C
- High level range (VIH): 2V
- Supply Voltage(Single): 4.5V~5.5V
- Package: SO-14
- Manufacturer: Texas Instruments
- Logic Level - High: 2V
- Base Part Number: SN74A
- Supplier Device Package: 14-PDIP
- Logic Level - Low: 0.8V
- Package / Case: 14-DIP (0.300", 7.62mm)
- Current - Output High, Low: 2mA, 20mA
- Features: -
- Mounting Type: Through Hole
- Packaging: Tube
- Voltage - Supply: 4.5V ~ 5.5V
- Number of Circuits: 6
- Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
- Number of Inputs: 6
- Part Status: Active
- Logic Type: Inverter
- detail: Inverter IC 6 Channel 14-PDIP
