دیتاشیت STF12NK80Z

STx12NK80Z

مشخصات دیتاشیت

نام دیتاشیت STx12NK80Z
حجم فایل 707.503 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت STx12NK80Z

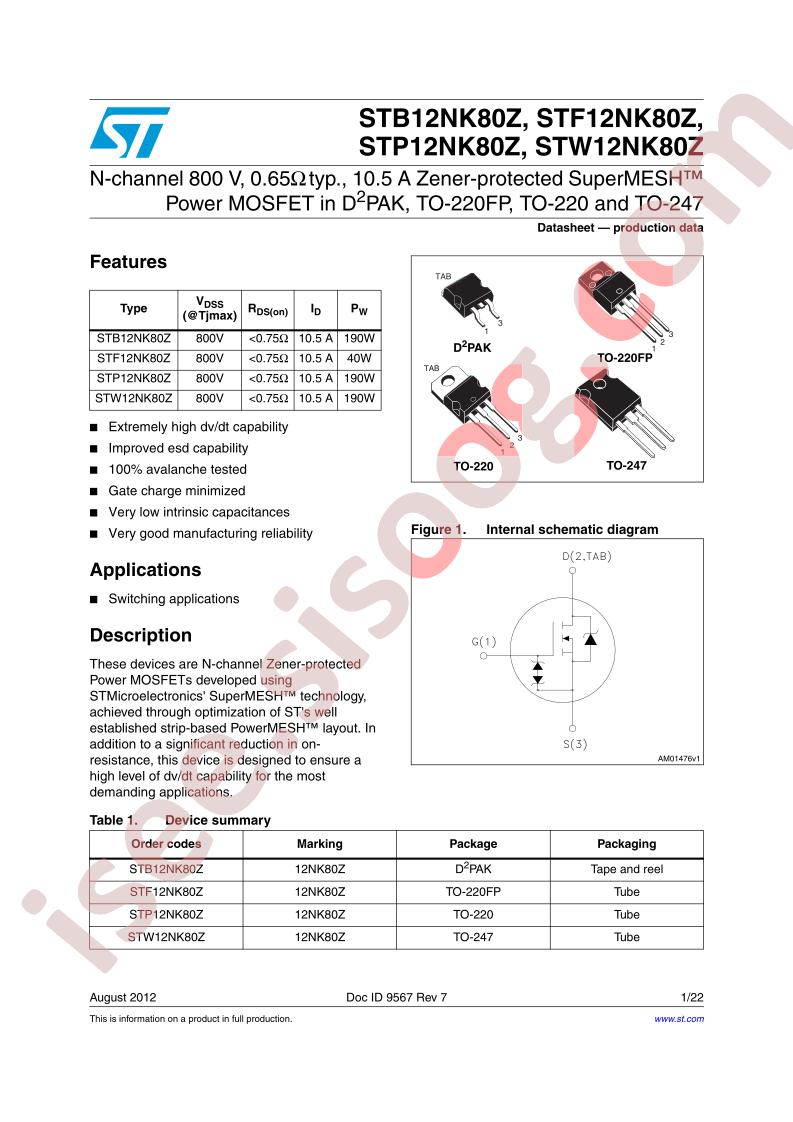

STx12NK80Z Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 800V
  • Current - Continuous Drain (Id) @ 25°C: 10.5A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 750mOhm @ 5.25A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 87nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 2620pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 40W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: STF12
