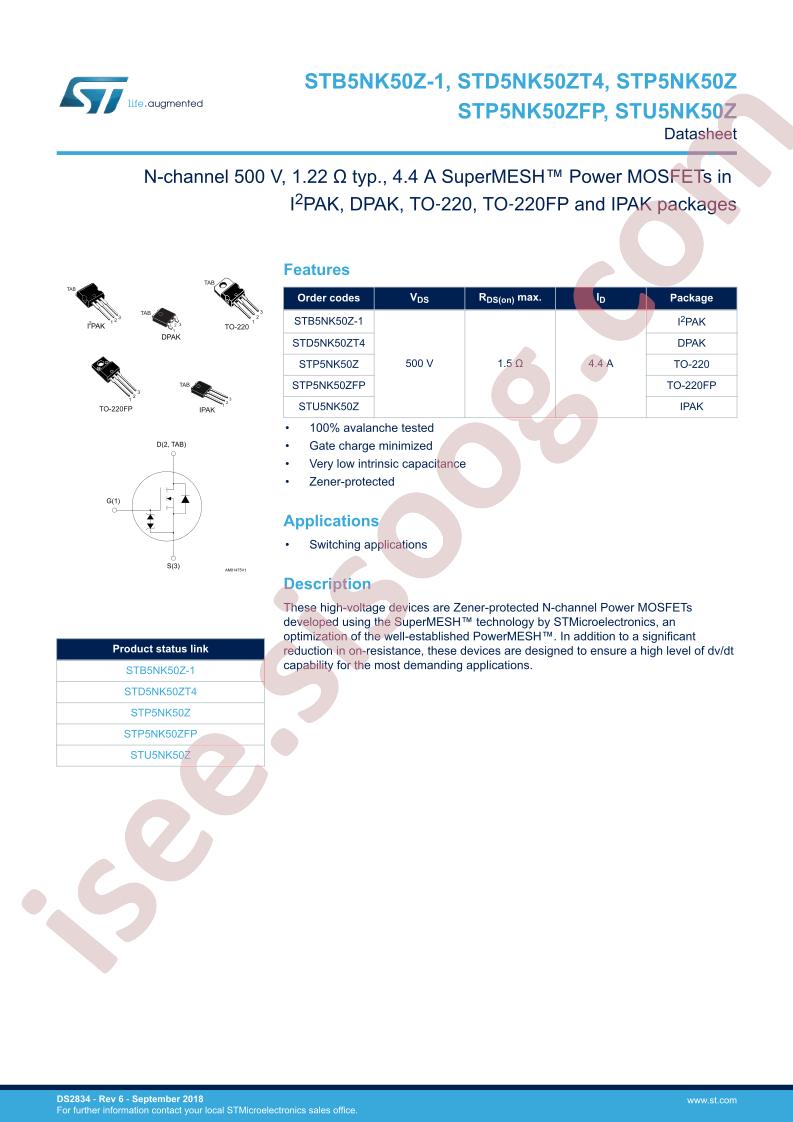

STx5NK50Z(FP,-1) دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STx5NK50Z(FP,-1)
|
|
حجم فایل
|
685.865
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
29
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
SuperMESH™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
500V
-
Current - Continuous Drain (Id) @ 25°C:
4.4A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
1.5Ohm @ 2.2A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 50µA
-
Gate Charge (Qg) (Max) @ Vgs:
28nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
535pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
70W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D2PAK
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
STB5N
-
detail:
N-Channel 500V 4.4A (Tc) 70W (Tc) Surface Mount D2PAK
