دیتاشیت STW13NB60
مشخصات دیتاشیت
| نام دیتاشیت | ST(H,W)13NB60(FI) |
|---|---|
| حجم فایل | 335.908 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت ST(H,W)13NB60(FI) |

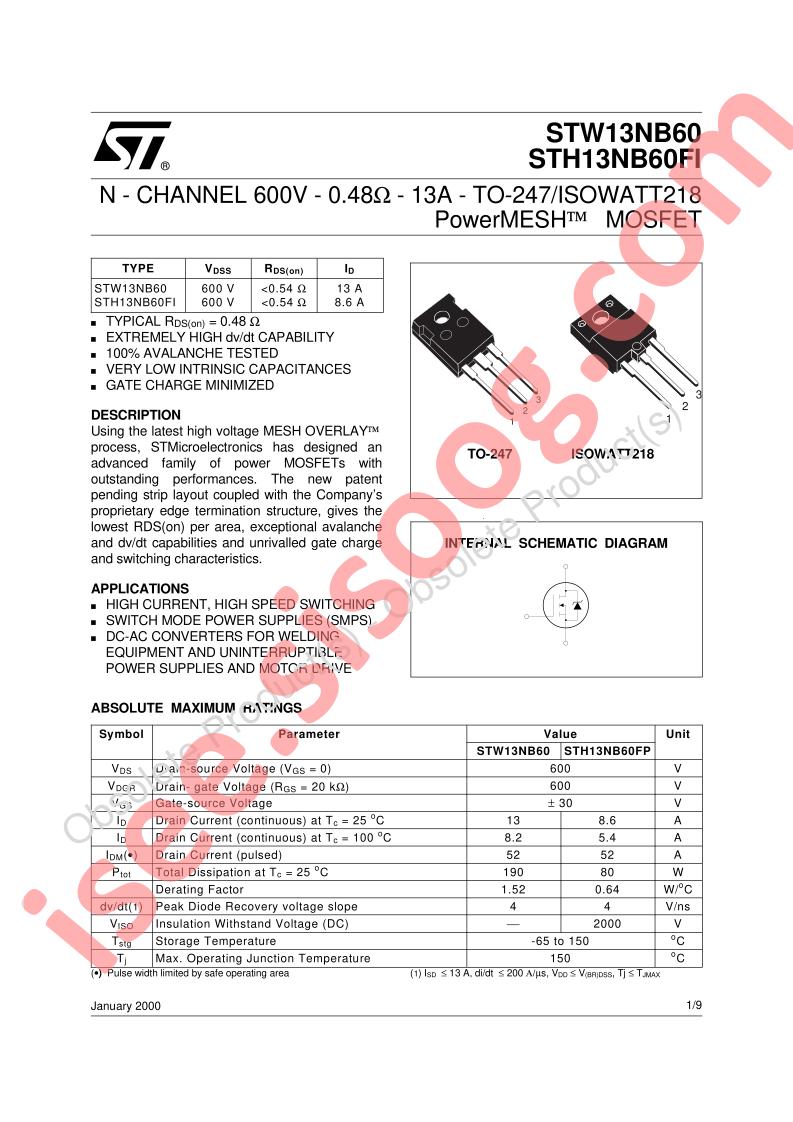

ST(H,W)13NB60(FI) Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: PowerMESH™
- Packaging: Tube
- Part Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600V
- Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 540mOhm @ 6.5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 82nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2600pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 190W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
- Base Part Number: STW13N
- detail: N-Channel 600V 13A (Tc) 190W (Tc) Through Hole TO-247-3
