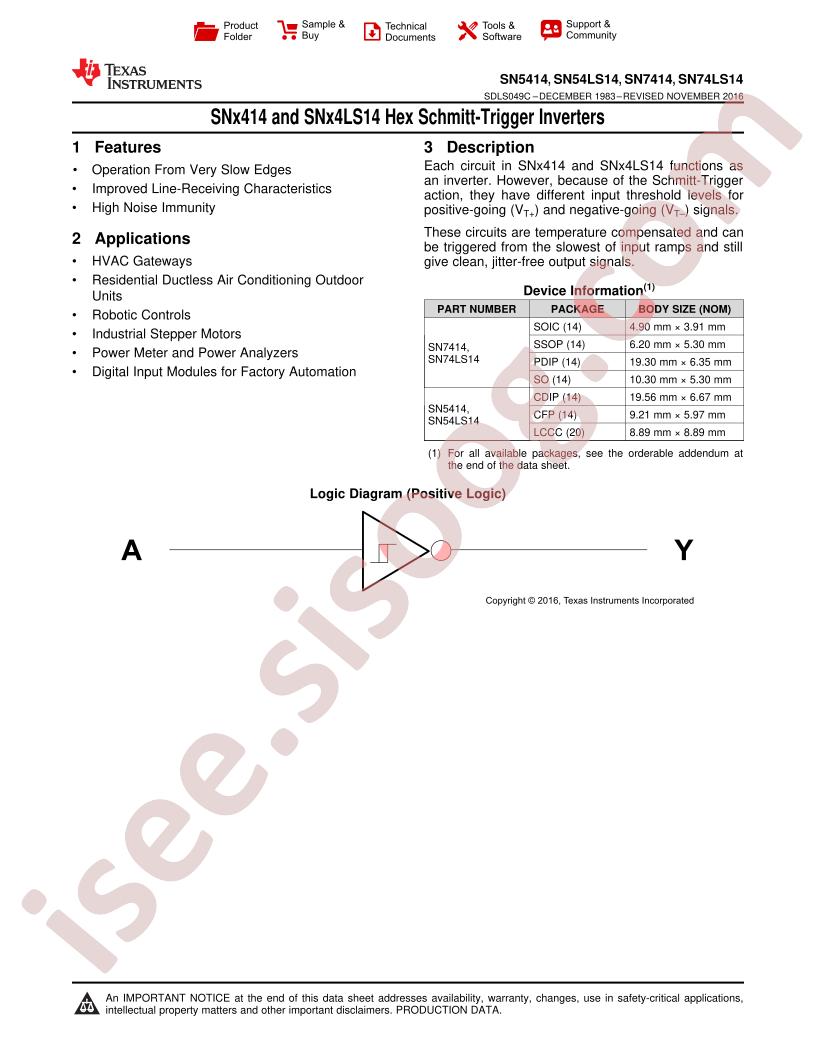

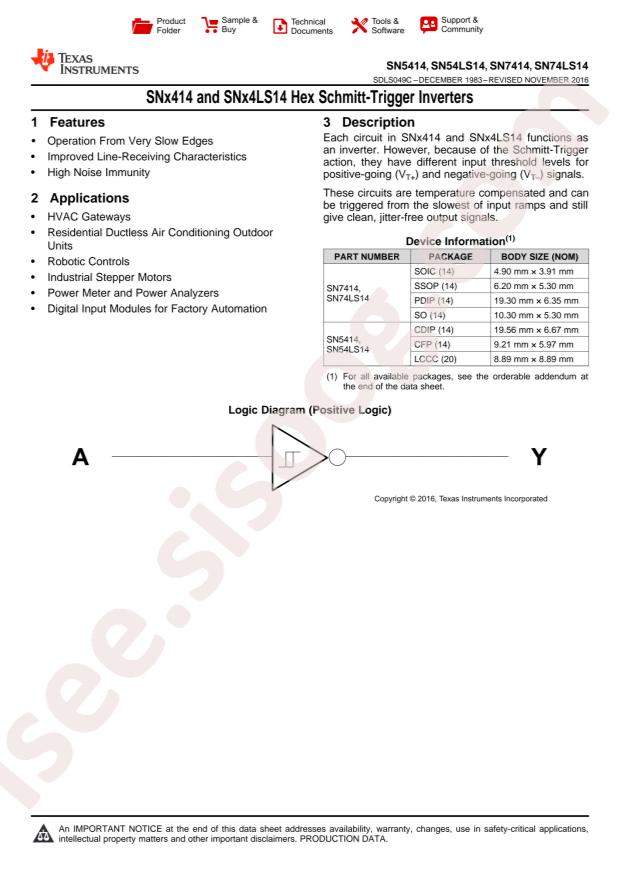

دیتاشیت SN74LS14N
مشخصات دیتاشیت
| نام دیتاشیت |
SN54/74(LS)14
|
| حجم فایل |
1503.26
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
35
|
مشخصات
-
RoHS:
true
-
Series:
74LS
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments SN74LS14N
-
Input Type:
Schmitt Trigger
-
Sink Current:
8mA
-
Source Current:
400uA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Low level range (VIL):
0.5V
-
Max Propagation Delay:
22ns@5V,15pF
-
Operating Temperature:
0°C~+70°C
-
High level range (VIH):
1.9V
-
Supply Voltage(Single):
4.75V~5.25V
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Logic Level - High:
1.9V
-
Base Part Number:
SN74LS14
-
Supplier Device Package:
14-PDIP
-
Logic Level - Low:
0.5V
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Current - Output High, Low:
400µA, 8mA
-
Features:
Schmitt Trigger
-
Mounting Type:
Through Hole
-
Packaging:
Tube
-
Voltage - Supply:
4.75V ~ 5.25V
-
Max Propagation Delay @ V, Max CL:
22ns @ 5V, 15pF
-
Part Status:
Active
-
Logic Type:
Inverter
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-PDIP
