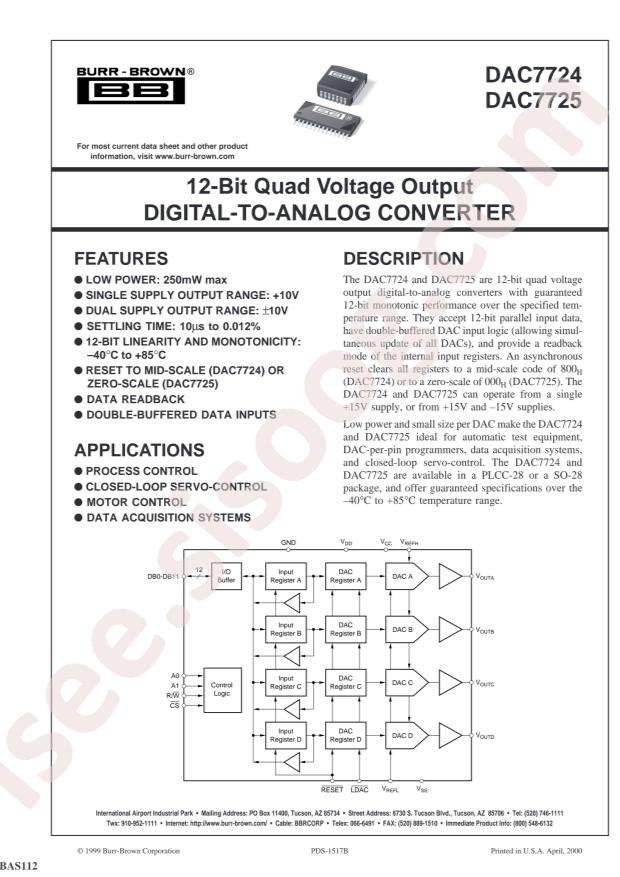

DAC7725U دیتاشیت

DAC7725U

مشخصات دیتاشیت

نام دیتاشیت DAC7725U
حجم فایل 92.133 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت DAC7725U

دانلود دیتاشیت

سایر مستندات

DAC7724, DAC7725 Datasheet 20 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments DAC7725U
  • Interface: Parallel
  • Resolution: 12Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 10us
  • Supply Voltage: 5V
  • Integral nonlinearity: ±2LSB;±1LSB
  • Operating Temperature: -40°C~+85°C
  • Package: SOP-28-300mil
  • Manufacturer: Texas Instruments
  • Voltage - Supply, Analog: ±14.25V ~ 15.75V
  • Supplier Device Package: 28-SOIC
  • Data Interface: Parallel
  • Number of D/A Converters: 4
  • Mounting Type: Surface Mount
  • Number of Bits: 12
  • Architecture: R-2R
  • Voltage - Supply, Digital: 5V
  • Packaging: Tube
  • Differential Output: No
  • Reference Type: External
  • Series: -
  • Package / Case: 28-SOIC (0.295", 7.50mm Width)
  • INL/DNL (LSB): ±2 (Max), ±1 (Max)
  • Base Part Number: DAC7725
  • Part Status: Active
  • detail: 12 Bit Digital to Analog Converter 4 28-SOIC
