دیتاشیت LMV7271MF

LMV7271, 72, 75 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LMV7271, 72, 75 Datasheet
حجم فایل 1684.816 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

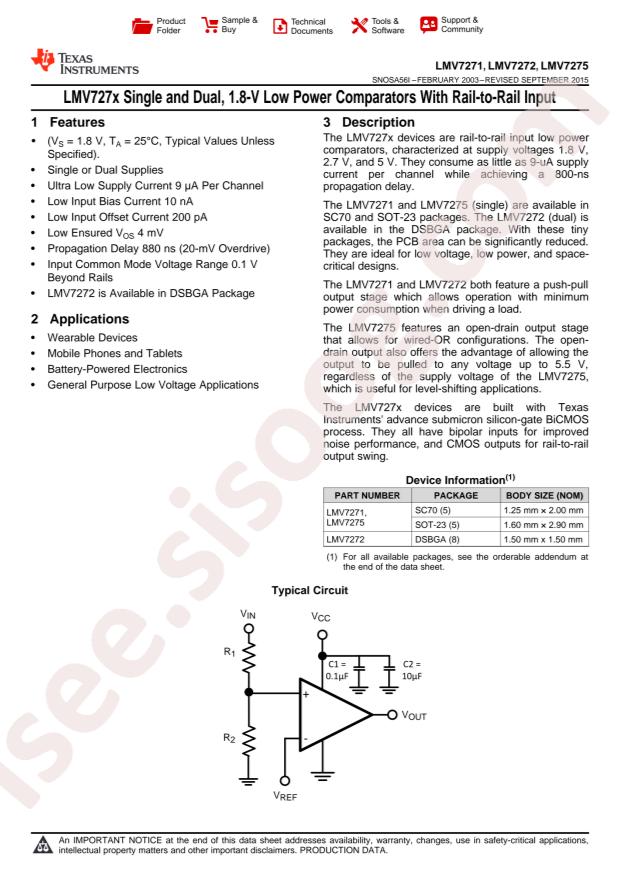

دانلود دیتاشیت LMV7271, 72, 75 Datasheet

LMV7271, 72, 75 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Texas Instruments LMV7271MF
  • Output Type: CMOS;Push Pull;轨到轨
  • Supply Voltage: 1.8V~5.5V;0.9V~2.75V
  • Number of Elements: -
  • Operating Temperature: -40°C~+85°C
  • Input Bias Current (Ib): 0.01uA
  • Input Offset Voltage (Vos): 4mV
  • Input Hysteresis Voltage (Vhys): -
  • Common Mode Rejection Ratio (CMRR): 78dB
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Base Part Number: LMV727
  • Voltage - Input Offset (Max): 4mV @ 5V
  • CMRR, PSRR (Typ): 78dB CMRR, 80dB PSRR
  • Series: -
  • Supplier Device Package: SOT-23-5
  • Propagation Delay (Max): 2.1µs
  • Hysteresis: -
  • Mounting Type: Surface Mount
  • Type: General Purpose
  • Current - Output (Typ): -
  • Package / Case: SC-74A, SOT-753
  • Part Status: Active
  • Packaging: Cut Tape (CT)
  • Current - Quiescent (Max): 14µA
  • Current - Input Bias (Max): 0.01µA @ 5V
  • Voltage - Supply, Single/Dual (±): 1.8V ~ 5.5V, ±0.9V ~ 2.75V
  • detail: Comparator General Purpose CMOS, Push-Pull, Rail-to-Rail SOT-23-5
