دیتاشیت UC2842D
مشخصات دیتاشیت
| نام دیتاشیت | UC1842-45, UC2842-45, UC3842-45 |
|---|---|
| حجم فایل | 4120.636 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 55 |
دانلود دیتاشیت UC1842-45, UC2842-45, UC3842-45 |

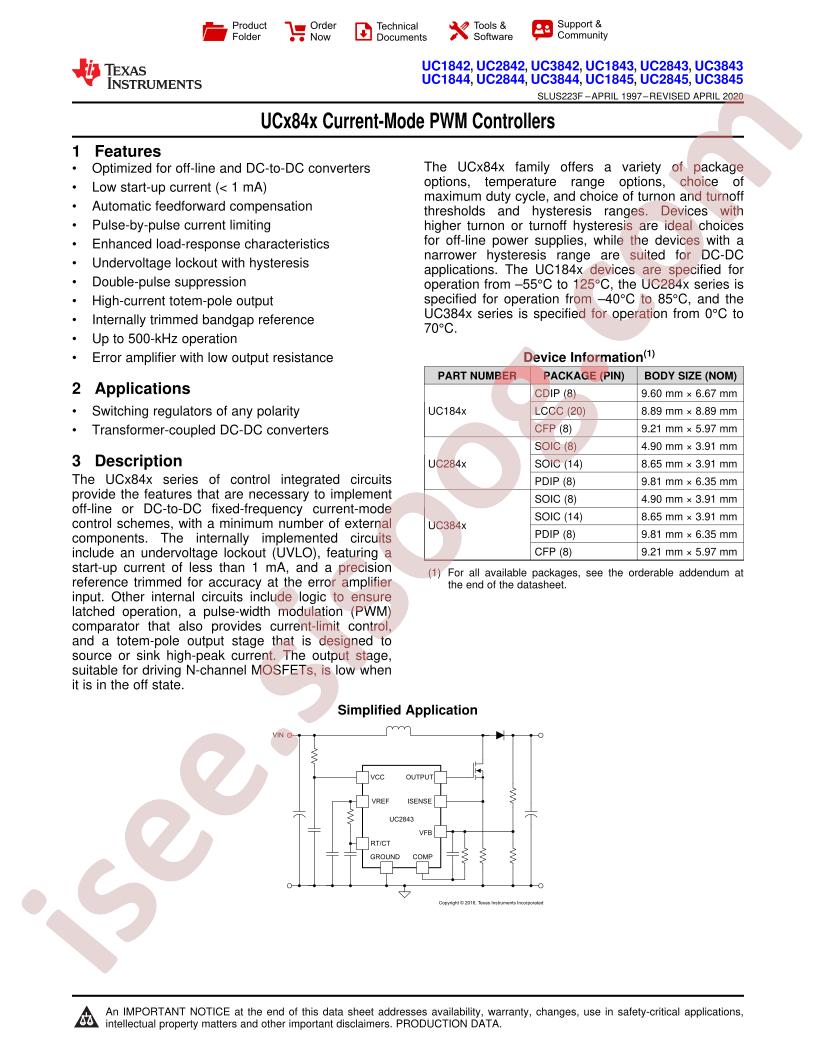

UC1842-45, UC2842-45, UC3842-45 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Datasheet: Texas Instruments UC2842D
- Supply Voltage: 12V~28V
- Operating Temperature: -40°C~+85°C@(TA)
- Package: SOP-14
- Manufacturer: Texas Instruments
- Function: Step-Up, Step-Down, Step-Up/Step-Down
- Packaging: Tube
- Series: -
- Supplier Device Package: 14-SOIC
- Serial Interfaces: -
- Topology: Boost, Buck, Buck-Boost, Flyback, Forward
- Control Features: Frequency Control
- Part Status: Active
- Base Part Number: UC2842
- Synchronous Rectifier: No
- Clock Sync: No
- Duty Cycle (Max): 97%
- Output Configuration: Positive
- Mounting Type: Surface Mount
- Number of Outputs: 1
- Output Phases: 1
- Output Type: Transistor Driver
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Voltage - Supply (Vcc/Vdd): 12V ~ 28V
- Frequency - Switching: Up to 500kHz
