دیتاشیت TPS54824RNVR

مشخصات دیتاشیت

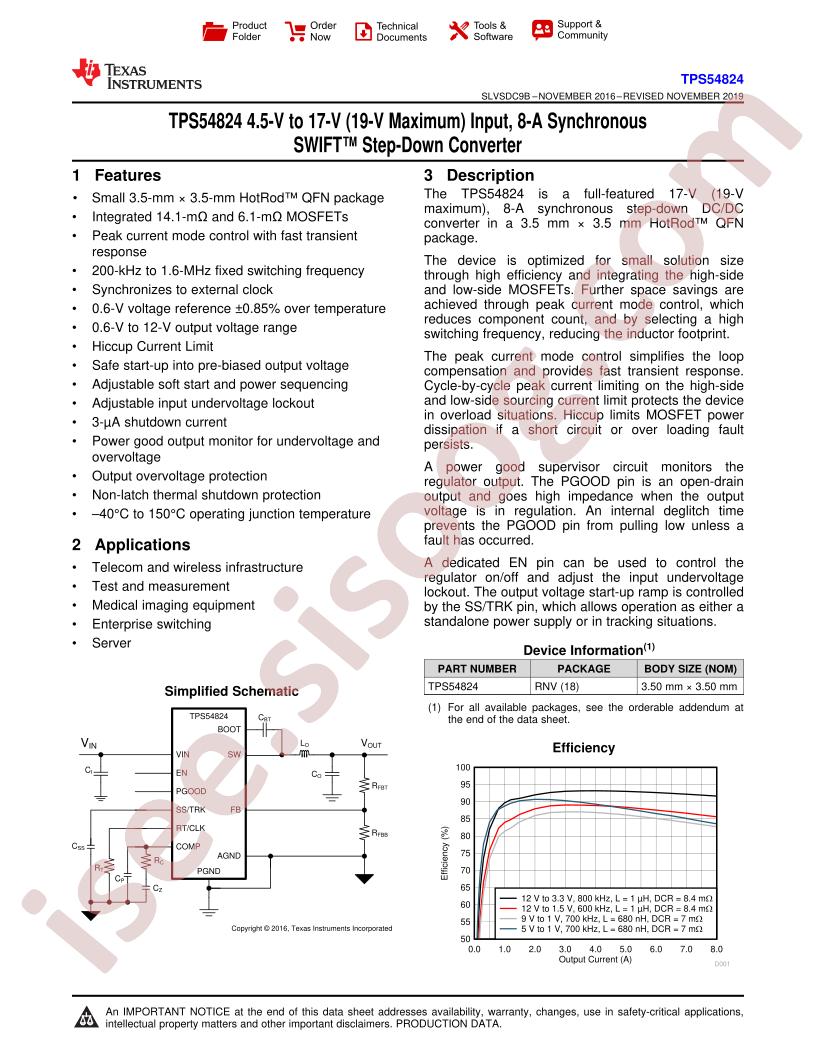

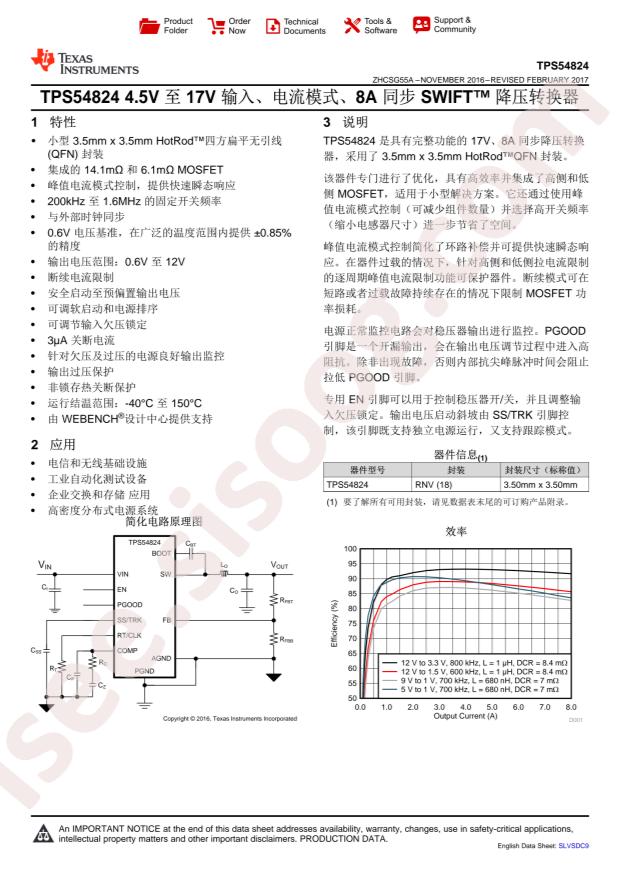

دانلود دیتاشیت TPS54824 Datasheet	TPS54824 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS54824RNVR
Output Type: Adjustable
Input Voltage: 4.5V~17V
Output Voltage: 0.6V~12V
Number of Outputs: 1
Switching Frequency: 1.6MHz
Output Current (Max): 8A
Operating Temperature: -40°C~+150°C@(TJ)
Synchronous Rectification: Yes
Package: VQFN-18(3.5x3.5)
Manufacturer: Texas Instruments
Voltage - Input (Max): 17V
Frequency - Switching: 200kHz ~ 1.6MHz
Packaging: Cut Tape (CT)
Series: SWIFT™
Output Configuration: Positive
Base Part Number: TPS548
Supplier Device Package: 18-VQFN-HR (3.5x3.5)
Mounting Type: Surface Mount
Voltage - Output (Max): 12V
Synchronous Rectifier: Yes
Package / Case: 18-VFQFN
Voltage - Output (Min/Fixed): 0.6V
Voltage - Input (Min): 4.5V
Part Status: Active
Current - Output: 8A
detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 8A 18-VFQFN
