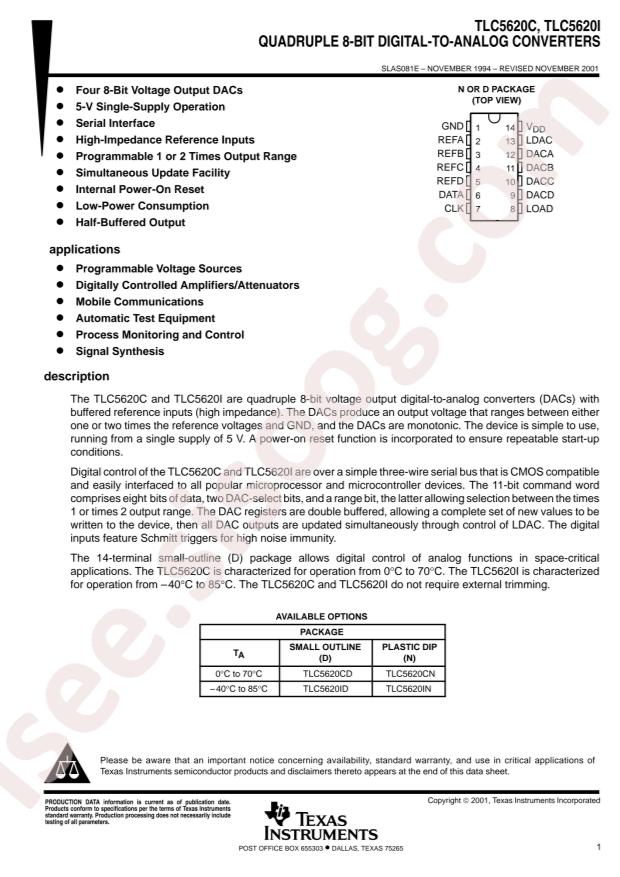

TLC5620C, TLC5620I Datasheet دیتاشیت

TLC5620C, TLC5620I Datasheet

مشخصات دیتاشیت

نام دیتاشیت TLC5620C, TLC5620I Datasheet
حجم فایل 399.184 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت TLC5620C, TLC5620I Datasheet

دانلود دیتاشیت

سایر مستندات

TI TLC5620CN 14 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments TLC5620CN
  • Interface: SPI
  • Resolution: 8Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 10us
  • Supply Voltage: 5V
  • Integral nonlinearity: ±1LSB;±0.9LSB
  • Operating Temperature: 0°C~+70°C
  • Package: DIP-14
  • Manufacturer: Texas Instruments
  • Base Part Number: TLC562
  • Architecture: String DAC
  • Number of Bits: 8
  • Series: -
  • Reference Type: External
  • Number of D/A Converters: 4
  • Supplier Device Package: 14-PDIP
  • Mounting Type: Through Hole
  • Differential Output: No
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Data Interface: SPI
  • Packaging: Tube
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • Part Status: Active
  • INL/DNL (LSB): ±1 (Max), ±0.9 (Max)
  • detail: 8 Bit Digital to Analog Converter 4 14-PDIP
