دیتاشیت SN74F521NSR
مشخصات دیتاشیت
| نام دیتاشیت | SN54F521, SN74F521 |
|---|---|
| حجم فایل | 1297.959 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت SN54F521, SN74F521 |

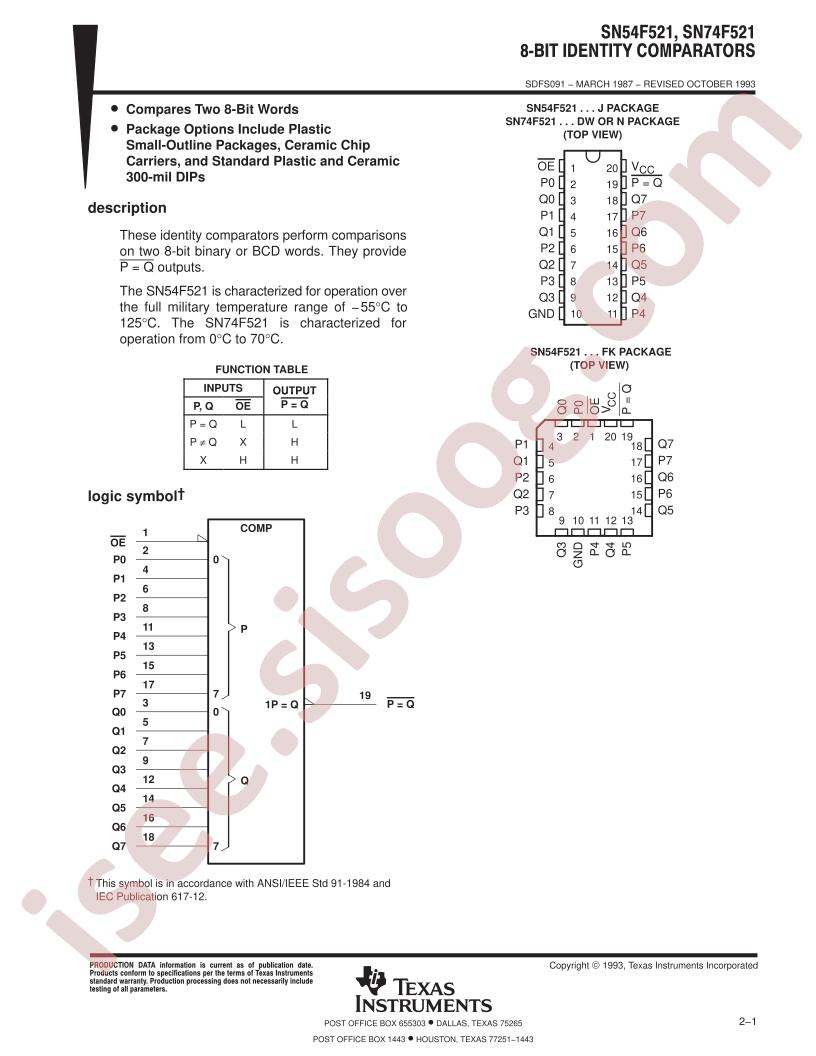

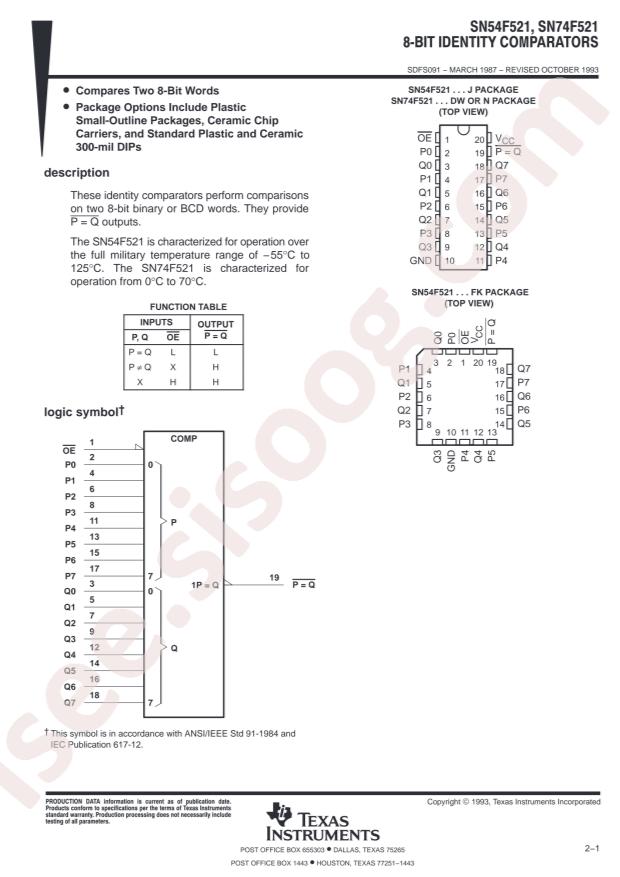

SN54F521, SN74F521 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Texas Instruments SN74F521NSR
- Package: SO-20-208mil
- Manufacturer: Texas Instruments
- Series: 74F
- Type: Identity Comparator
- Package / Case: 20-SOIC (0.209", 5.30mm Width)
- Supplier Device Package: 20-SO
- Output: Active Low
- Part Status: Active
- Current - Output High, Low: 1mA, 20mA
- Mounting Type: Surface Mount
- Operating Temperature: 0°C ~ 70°C
- Max Propagation Delay @ V, Max CL: 10ns @ 5V, 50pF
- Voltage - Supply: 4.5V ~ 5.5V
- Output Function: A=B
- Packaging: Cut Tape (CT)
- Base Part Number: SN74F52
- Number of Bits: 8
- detail: Magnitude Comparator Bit Active Low Output A=B 20-SO
