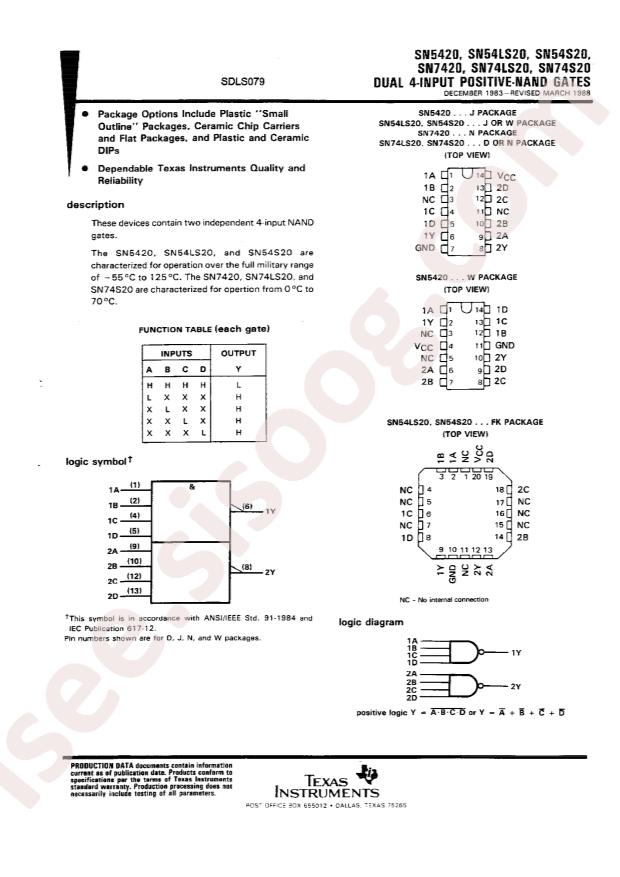

دیتاشیت SN74LS20NSR

SN54,74(LS,S)20

مشخصات دیتاشیت

نام دیتاشیت SN54,74(LS,S)20
حجم فایل 1103.984 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت SN54,74(LS,S)20

SN54,74(LS,S)20 Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74LS20NSR
  • Package: SOP-14-208mil
  • Manufacturer: Texas Instruments
  • Series: 74LS
  • Current - Quiescent (Max): 800µA
  • Package / Case: 14-SOIC (0.209", 5.30mm Width)
  • Logic Level - High: 2V
  • Number of Circuits: 2
  • Number of Inputs: 4
  • Features: -
  • Current - Output High, Low: 400µA, 8mA
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SOP
  • Logic Type: NAND Gate
  • Operating Temperature: 0°C ~ 70°C
  • Max Propagation Delay @ V, Max CL: 15ns @ 5V, 15pF
  • Voltage - Supply: 4.75V ~ 5.25V
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74LS20
  • Part Status: Active
  • Logic Level - Low: 0.8V
  • detail: NAND Gate IC 2 Channel 14-SOP
