دیتاشیت SN74LS280NSR
مشخصات دیتاشیت
| نام دیتاشیت | SN54,74(LS,S)280 |
|---|---|
| حجم فایل | 988.44 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت SN54,74(LS,S)280 |

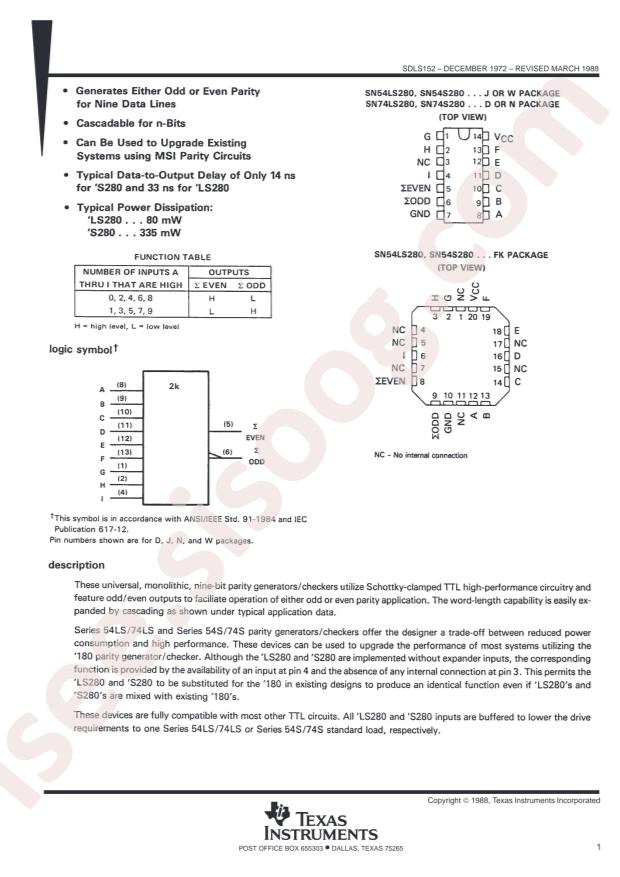

SN54,74(LS,S)280 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Parity Generators & Checkers
- Datasheet: Texas Instruments SN74LS280NSR
- Logic Type: 奇偶校验发生器/校验器
- Logic Family: 74LS
- Sink Current: 8mA
- Source Current: 400uA
- Supply Voltage: 4.75V~5.25V
- Number of Circuits: 9
- Operature Temperature: 0°C~+70°C
- Package: SOP-14
- Manufacturer: Texas Instruments
- Series: 74LS
- Part Status: Active
- Current - Output High, Low: 400µA, 8mA
- Mounting Type: Surface Mount
- Operating Temperature: 0°C ~ 70°C
- Package / Case: 14-SOIC (0.209", 5.30mm Width)
- Voltage - Supply: 4.75V ~ 5.25V
- Packaging: Cut Tape (CT)
- Base Part Number: SN74LS28
- Supplier Device Package: 14-SOP
- detail: Parity Generator 9-Bit 14-SOP
