دیتاشیت AD8842ARZ

AD8842

مشخصات دیتاشیت

نام دیتاشیت AD8842
حجم فایل 1220.801 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت AD8842

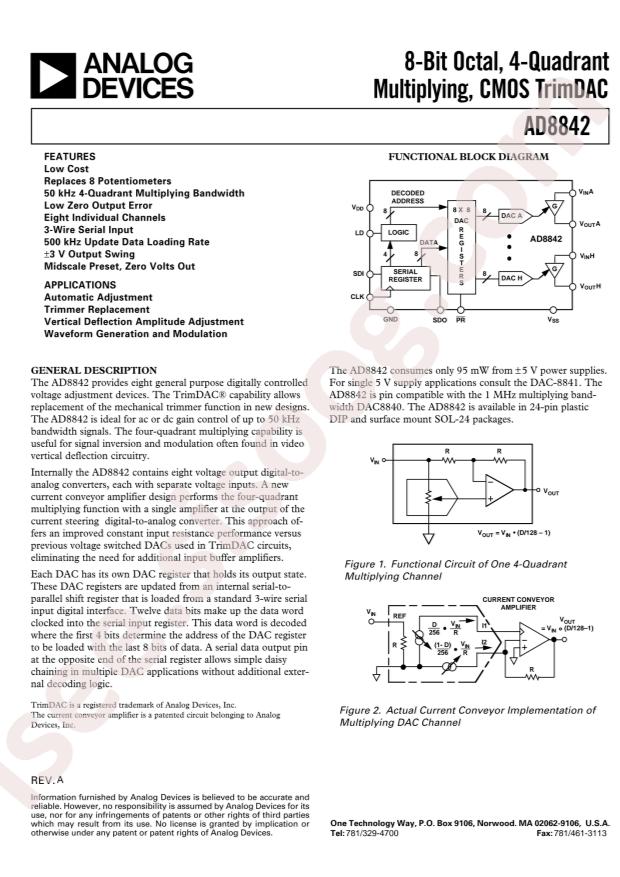

AD8842 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD8842ARZ
  • Interface: SPI
  • Resolution: 8Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 5.4us
  • Integral nonlinearity: ±0.2LSB;±0.4LSB
  • Operating Temperature: -40°C~+85°C
  • Package: SOP-24-300mil
  • Manufacturer: Analog Devices
  • Series: TrimDAC®
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 8
  • Number of D/A Converters: 8
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: External
  • Voltage - Supply, Analog: ±5V
  • Voltage - Supply, Digital: -
  • INL/DNL (LSB): ±0.2, ±0.4
  • Architecture: R-2R
  • Package / Case: 24-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 24-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: AD8842
  • detail: 8 Bit Digital to Analog Converter 8 24-SOIC
