دیتاشیت SN74LVTH543DBR

مشخصات دیتاشیت

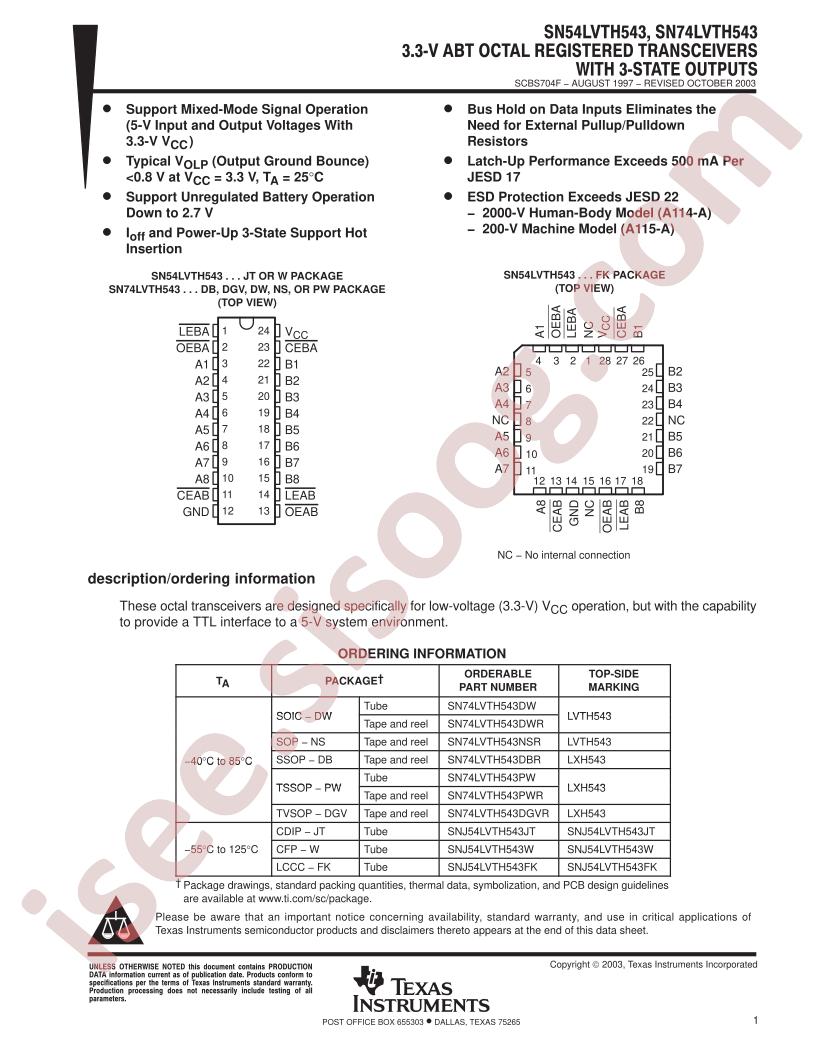

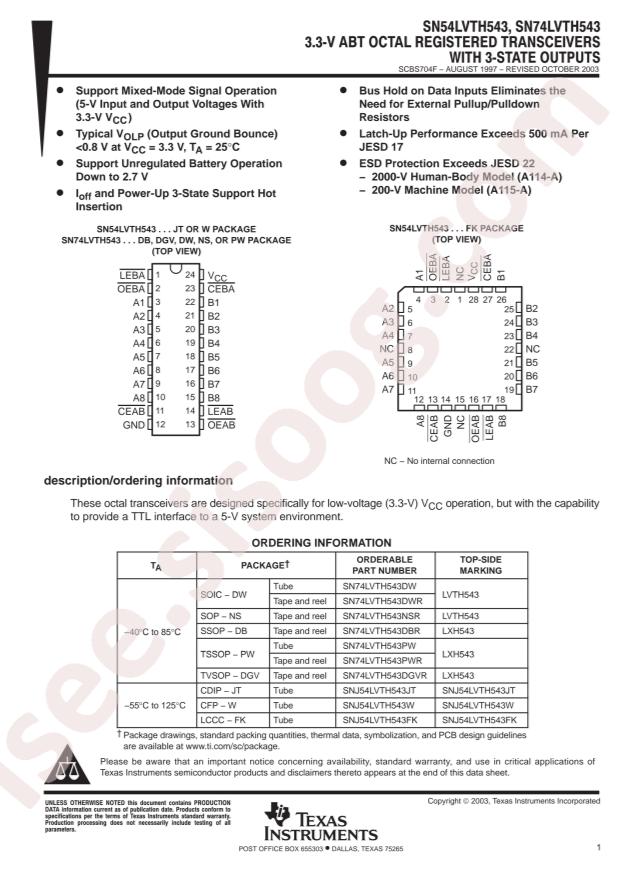

دانلود دیتاشیت SN54LVTH543, SN74LVTH543	SN54LVTH543, SN74LVTH543 Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74LVTH543DBR
output type: Tri-State
Logic Family: 74LVTH
Sink Current: 64mA
Source Current: 32mA
Supply Voltage: 2.7V~3.6V
Number of Elements: 1
Operating Temperature: -40°C~+85°C
Number of Bits per Element: 8
Package: SSOP-24
Manufacturer: Texas Instruments
Series: 74LVTH
Package / Case: 24-SSOP (0.209", 5.30mm Width)
Supplier Device Package: 24-SSOP
Part Status: Active
Current - Output High, Low: 32mA, 64mA
Mounting Type: Surface Mount
Base Part Number: SN74LVT
Voltage - Supply: 2.7V ~ 3.6V
Packaging: Cut Tape (CT)
Input Type: -
Logic Type: Transceiver, Non-Inverting
detail: Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 24-SSOP
