دیتاشیت MIC4452ZT

MIC4451, MIC4452

مشخصات دیتاشیت

نام دیتاشیت MIC4451, MIC4452
حجم فایل 631.969 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت MIC4451, MIC4452

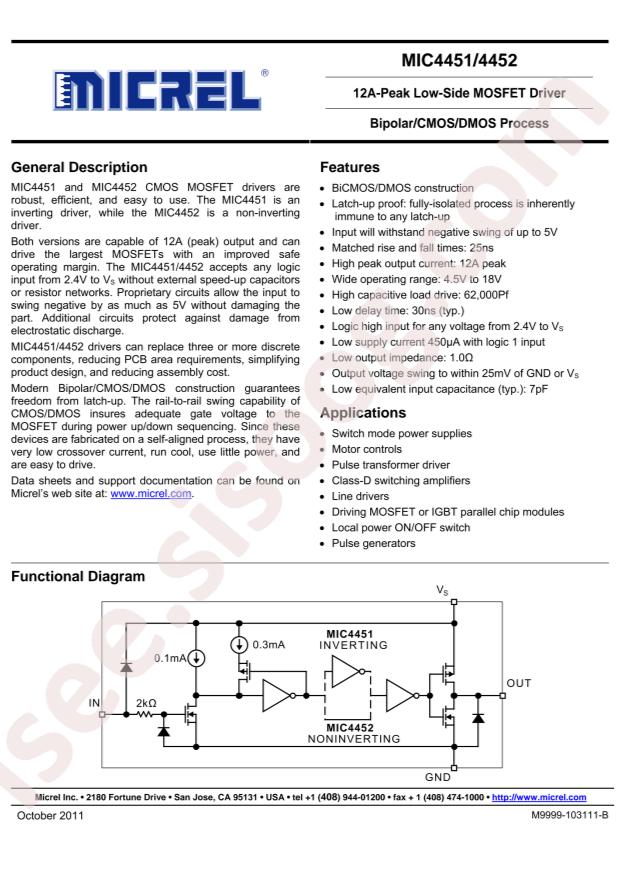

MIC4451, MIC4452 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech MIC4452ZT
  • Fall Time: 24ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 20ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: 0°C~+70°C@(Ta)
  • Peak Output Current(sink): 12A
  • Peak Output Current(source): 12A
  • Package: TO-220-5
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2.4V
  • Current - Peak Output (Source, Sink): 12A, 12A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 20ns, 24ns
  • Mounting Type: Through Hole
  • Package / Case: TO-220-5
  • Supplier Device Package: TO-220-5
  • Base Part Number: MIC4452
  • detail: Low-Side Gate Driver IC Non-Inverting TO-220-5
