دیتاشیت AD7541AKNZ

AD7541A

مشخصات دیتاشیت

نام دیتاشیت AD7541A
حجم فایل 265.058 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

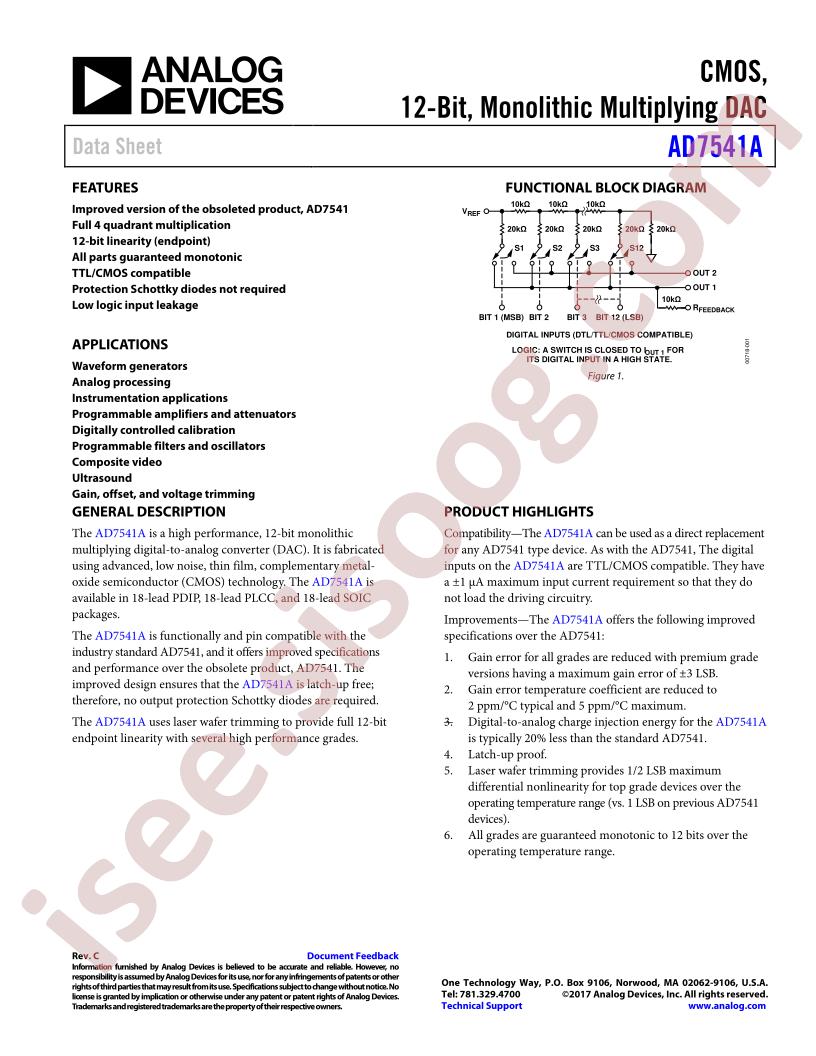

دانلود دیتاشیت AD7541A

AD7541A Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 1
  • Settling Time: 600ns (Typ)
  • Output Type: Current - Unbuffered
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: External
  • Voltage - Supply, Analog: 5V ~ 16V
  • Voltage - Supply, Digital: 5V ~ 16V
  • INL/DNL (LSB): ±0.5 (Max), ±0.5 (Max)
  • Architecture: R-2R
  • Operating Temperature: 0°C ~ 70°C
  • Package / Case: 18-DIP (0.300", 7.62mm)
  • Supplier Device Package: 18-PDIP
  • Mounting Type: Through Hole
  • Base Part Number: AD7541
  • detail: 12 Bit Digital to Analog Converter 1 18-PDIP
