دیتاشیت AD7915BRMZ
مشخصات دیتاشیت
| نام دیتاشیت | AD7915,16 Series Datasheet |
|---|---|
| حجم فایل | 567.383 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |

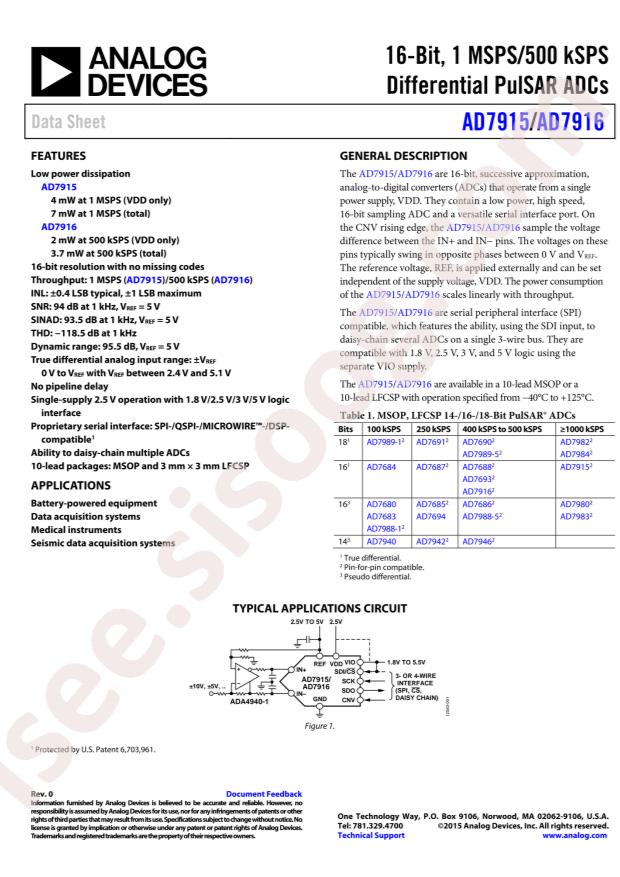

دانلود دیتاشیت AD7915,16 Series Datasheet |
AD7915,16 Series Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD7915BRMZ
- Interface: SPI;DSP
- resolution: 16Bit
- Supply Voltage: 2.375V~2.625V
- differential input: Yes
- number of channels: 1
- sampling frequency: 1MHz
- Operating Temperature: -40°C~+125°C
- Package: MSOP-10
- Manufacturer: Analog Devices
- Series: PulSAR®
- Packaging: Tube
- Part Status: Active
- Number of Bits: 16
- Sampling Rate (Per Second): 1M
- Number of Inputs: 1
- Input Type: Differential
- Data Interface: SPI, DSP
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: SAR
- Reference Type: External
- Voltage - Supply, Analog: 2.375V ~ 2.625V
- Voltage - Supply, Digital: 2.375V ~ 2.625V
- Features: -
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-MSOP
- Mounting Type: Surface Mount
- Base Part Number: AD7915
- detail: 16 Bit Analog to Digital Converter 1 Input 1 SAR 10-MSOP
