دیتاشیت ADG5212BCPZ-RL7
مشخصات دیتاشیت
| نام دیتاشیت |
ADG5212/213
|
| حجم فایل |
437.694
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:

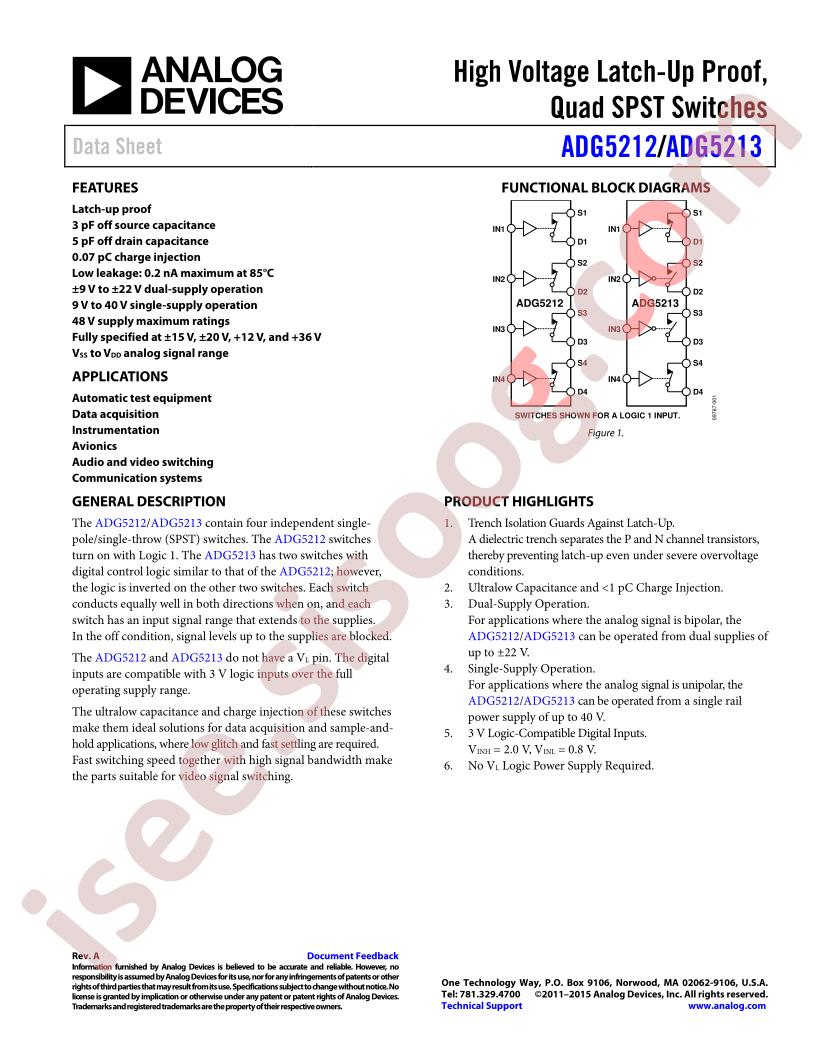

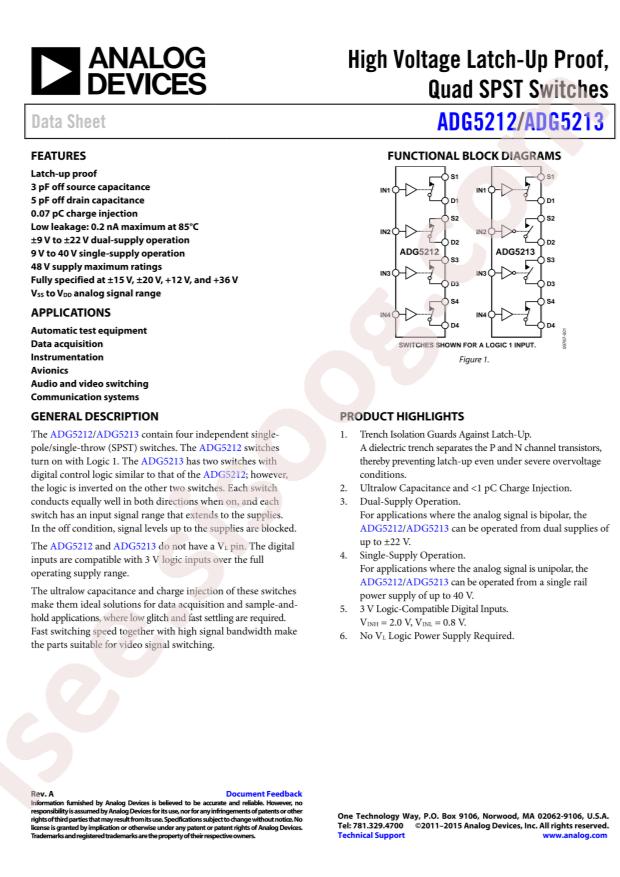

Analog Devices ADG5212BCPZ-RL7
-
Turn-on time:
195ns
-
Turn-off time:
165ns
-
Supply Voltage:
9V~40V
-
Switch Circuit:
SPST(SPST)-Normal Open
-
Number of Channels:
4
-
On-State Resistance (Max):
160Ω
-
Package:
LFCSP-16
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Multiplexer/Demultiplexer Circuit:
1:1
-
Number of Circuits:
4
-
Channel-to-Channel Matching (ΔRon):
1.5Ohm
-
Voltage - Supply, Single (V+):
9V ~ 40V
-
Voltage - Supply, Dual (V±):
±9V ~ 22V
-
Switch Time (Ton, Toff) (Max):
195ns, 165ns
-
-3db Bandwidth:
460MHz
-
Charge Injection:
-0.5pC
-
Channel Capacitance (CS(off), CD(off)):
2.8pF, 4.8pF
-
Current - Leakage (IS(off)) (Max):
100pA
-
Crosstalk:
-105dB @ 1MHz
-
Operating Temperature:
-40°C ~ 125°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
16-WQFN Exposed Pad, CSP
-
Supplier Device Package:
16-LFCSP-WQ (4x4)
-
Base Part Number:
ADG5212
-
detail:
4 Circuit IC Switch 1:1 160Ohm 16-LFCSP-WQ (4x4)
