دیتاشیت REF43GPZ

REF43

مشخصات دیتاشیت

نام دیتاشیت REF43
حجم فایل 978.712 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت REF43

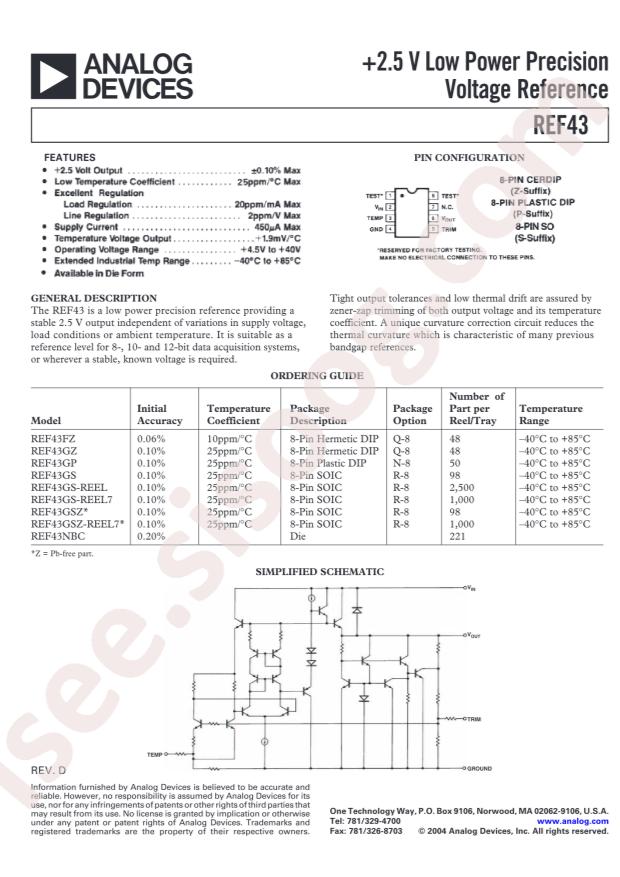

REF43 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Voltage References
  • Datasheet: Analog Devices REF43GPZ
  • Tolerance: ±0.1%
  • Output Type: Fixed
  • Input Voltage: 4.5V~40V
  • Output Current: 20mA
  • Output Voltage: 2.5V
  • Reference Type: series connection
  • Supply Current: 450uA
  • Noise - 10Hz to 10kHz: 10uVrms
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Noise - 1/10Hz to 10Hz: -
  • Temperature Coefficient: 25ppm/°C
  • Package: PDIP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Voltage - Output (Min/Fixed): 2.5V
  • Current - Output: 20mA
  • Noise - 0.1Hz to 10Hz: -
  • Voltage - Input: 4.5V ~ 40V
  • Current - Supply: 450µA
  • Mounting Type: Through Hole
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-PDIP
  • Base Part Number: REF43
  • detail: Series Voltage Reference IC ±0.1% 8-PDIP
