دیتاشیت ADUM4154ARIZ

ADuM4154

مشخصات دیتاشیت

نام دیتاشیت ADuM4154
حجم فایل 412.399 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت ADuM4154

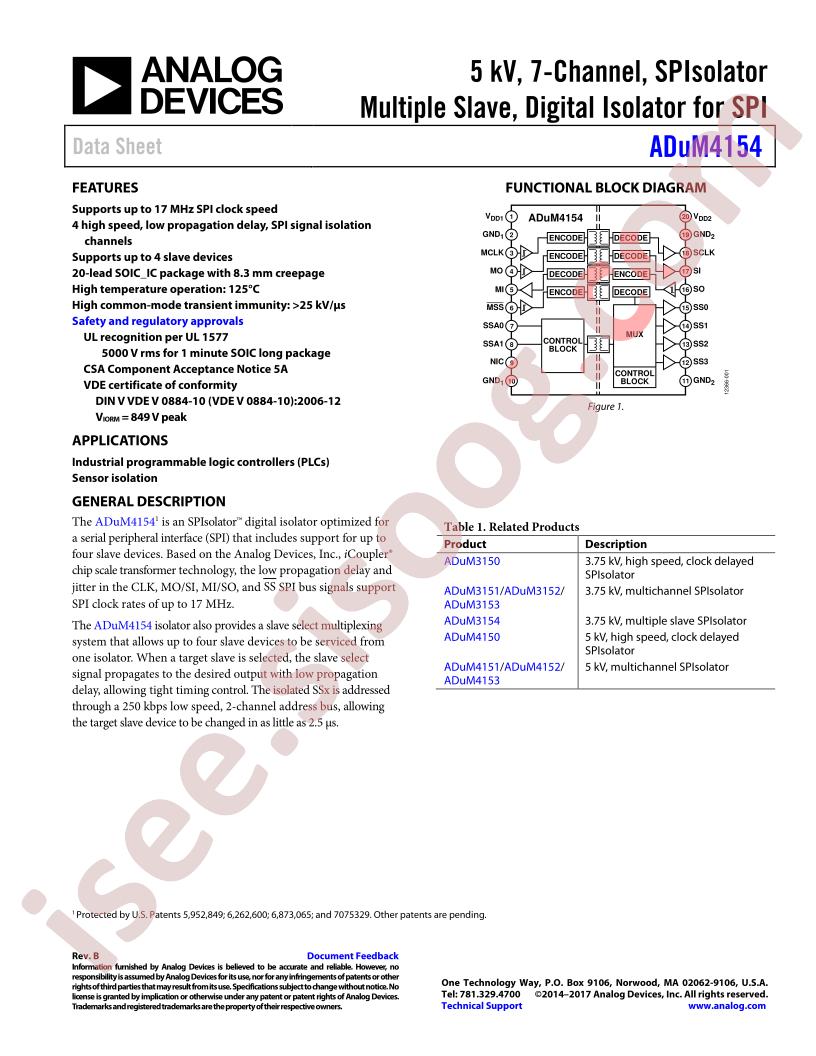

ADuM4154 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: iCoupler®, SPIsolator™
  • Packaging: Tube
  • Part Status: Active
  • Technology: Magnetic Coupling
  • Type: SPI
  • Isolated Power: No
  • Number of Channels: 4
  • Inputs - Side 1/Side 2: 3/1
  • Channel Type: Unidirectional
  • Voltage - Isolation: 5000Vrms
  • Common Mode Transient Immunity (Min): 25kV/µs
  • Data Rate: 2Mbps
  • Propagation Delay tpLH / tpHL (Max): 25ns, 25ns
  • Pulse Width Distortion (Max): 2ns
  • Rise / Fall Time (Typ): 2.5ns, 2.5ns
  • Voltage - Supply: 3V ~ 5.5V
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 20-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 20-SOIC-IC
  • Base Part Number: ADUM4154
  • detail: SPI Digital Isolator 5000Vrms 4 Channel 2Mbps 25kV/µs CMTI 20-SOIC (0.295", 7.50mm Width)
